KAT 10VD, Kert KAT10 Series Digital Bench Power Supply, 0 → 15V, 10A, 1-Output, Блок питания

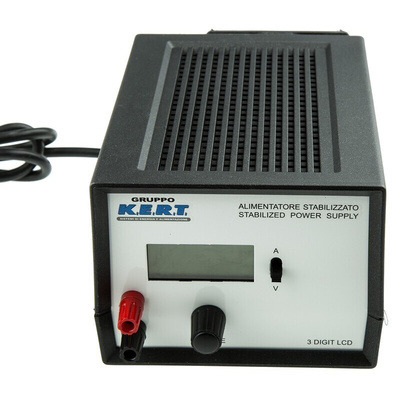

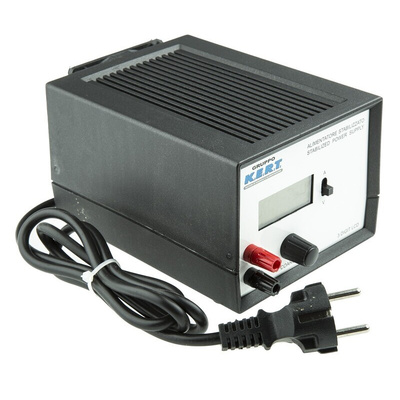

Kert Stabilised Power Supply

The Kert stabilised power supply has 1 adjustable output. The output voltage rating ranges between 0V and 15V and the current rating is 10A. The power supply features an output voltage adjustment button and a digital readout for excellent performance and highly reliable operation.
Note:
2ohm minimum load required.

Features and Benefits

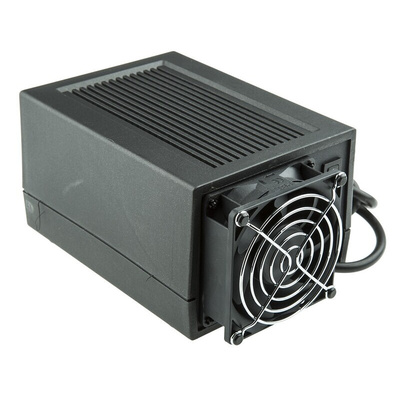

Fan for cooling
Output current and voltage displayed
Overload protection
Short circuit protection
Thermal protection
Output voltage adjustment button
Digital readout display
Banana female output connectors
Ripple voltage is 20mV

Applications

Production testing
QA verifications
R&D design verification

Certifications

Directive 2014/30/UE
Directive 2014/35/UE
EN 55014
EN 60950-1
EN 61000-3-2
EN 61000-3-3
EN 61000-4-11
EN 61000-4-2
EN 61000-4-4
EN 61000-4-5
IP20 rated
CE certified

Adjustable output stabilized power supplies AT xVD

AT10VD Performance curve

Declaration of Conformity - Kert Power Supplies
