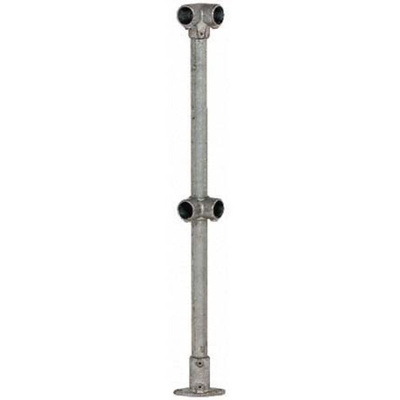

RS PRO Silver Malleable Iron Round Tube, 1100mm Length, Dia. 48.3mm

90° Corner Unit

Note

If painting this product the product has to be cleaned and primed with an etch primer before applying the paint finish

Warning

Maximum side loading of 360 Nm, provided that the barrier is correctly fixed to a concrete or steel base (not timber). Mid rail centres, between upright supports, must not exceed 1500mm
Consideration must be given to the grub screw, which tightened to 39 Nm, gives a slip load of 900kg (safety factor 2x)

Standards

BS 1387

Pre-assembled Hand Rails

Features and Benefits:

Pre-assembled galvanised handrail
Height 1100 mm to the centre line of top rail
Formed using tube Size Ref. 3
Safety factor: 2.5
General applications include pedestrian handrail, directional rail, guard rail, pillar protection etc.

RS Pro Datasheet
