RS PRO Toggle Switch, Panel Mount, On-Off-On, SPDT, Solder Terminal, Тумблер

RS PRO SPDT Toggle Switch, On-Off-On, Panel Mount

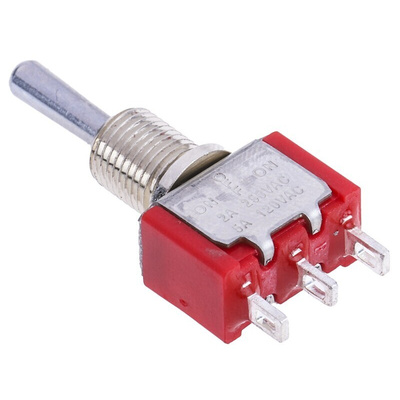

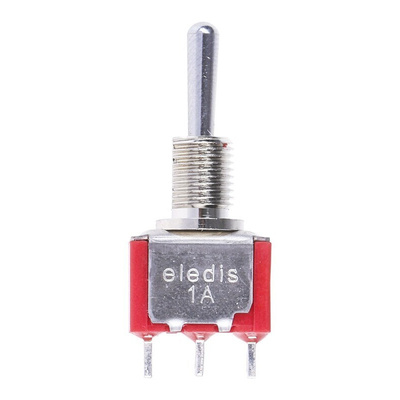

This RS PRO miniature toggle switch with an On-Off-On configuration can be used for opening and closing electrical circuits, and panel mounted if desired. These kinds of switches are often used on printed circuit boards (PCBs). The single pole double throw (SPDT) switch is latching, so it's held in place without needing constant compression. It features movable, silver-plated brass contacts and a brass actuator. Housed in stainless steel, it has a diallyl phthalate case.

You can safely use this toggle switch in temperatures ranging from -30°C to +85°C. Its ON-OFF-ON configuration means that it has a third switching position in the centre which is off.

This component is Underwriters Laboratories (UL) recognised in Canada and the United States, so it's a safe device. Note that toggle switches are differentiated by contact resistance, contact current rating and/or voltage rating, so you can choose the correct model for your application.

Features and Benefits

• Latching toggle switch
• Chromium-plated brass actuator
• Contact current rating of 5 A @ 28 V DC
• Silver-plated brass contact material
• Contacts are movable
• Panel cut out size of 6.35 mm
• Operating temperature range of -30°C to +85°C
• Contact current rating of 5 A @ 125 V AC and 5 A @ 28 V DC
• Panel mount
• Actuator length of 10.41 mm
• Panel cut out diameter of 6.35 mm
• SPDT contact configuration
• Contact resistance of 10 mΩ
• Solder type terminal
• UL listed
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; cUL recognised
