RS PRO Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, Тумблер

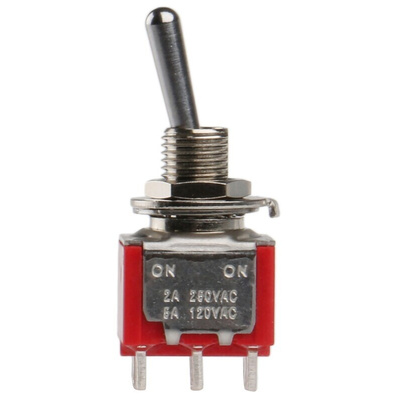

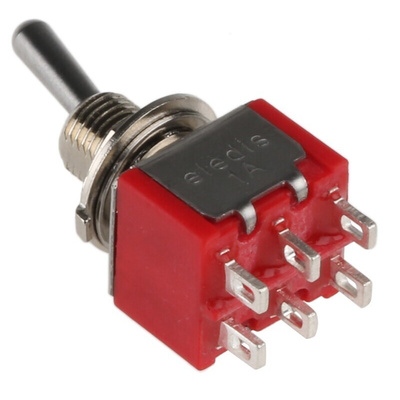

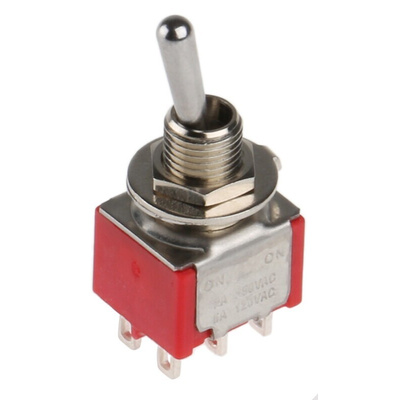

RS PRO DPDT Toggle Switch, Latching, Panel Mount

Open and close electrical circuits with this RS PRO DPDT (double pole double throw) miniature toggle switch. It's particularly suited to medium-duty commercial applications, and you can panel mount it. These types of switches are commonly used on printed circuit boards (PCBs).

Featuring movable contacts, this latching switch is fabricated from silver-plated brass and comprises a brass actuator, diallyl phthalate case and stainless steel casing. It's safe to operate at temperatures ranging from -30°C to +85°C. As it's a latching switch, you don't need to keep it compressed when operating it and the ON-ON switch allows the toggle to latch on in either of the ON positions.

International safety organisation Underwriters Laboratories have certified this device so it's UL recognised in Canada and the United States. Toggle switches can differ depending on their contact resistance, contact current rating and/or voltage rating, so select the correct model for your needs.

Features and Benefits

• Latching toggle switch
• Brass actuator
• Contact current rating of 5 A @ 28 V DC
• Silver-plated brass contact material
• Contacts are movable
• Operating temperature range of -30°C to +85°C
• Panel mount
• Actuator length of 10.41 mm
• Panel cut out diameter of 6.35 mm
• DPDT (double pole double throw) contact configuration
• Contact resistance of 10 mΩ
• Solder type terminal
• UL (Underwriters Laboratories) listed for safety
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL; cUL recognised
