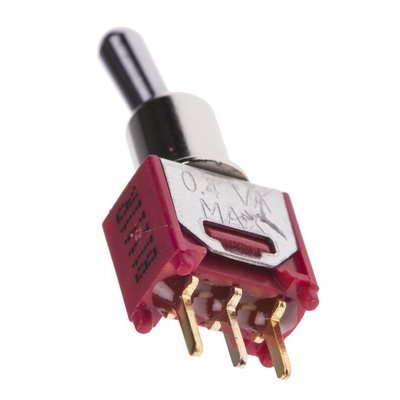

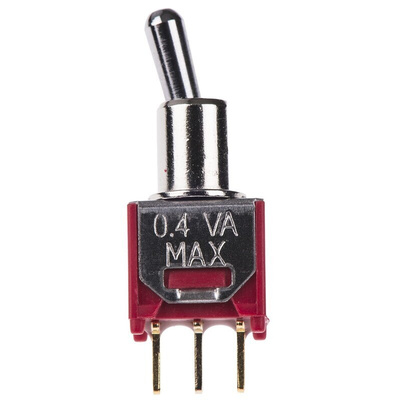

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, Тумблер

RS PRO SPDT Toggle Switch, Latching, PCB

When you need a compact latching switch for your PCB (printed circuit board), use this RS PRO toggle. It's miniature-sized with a slim component body, so it won't take up unnecessary space on your panel. This double pole, double throw switch can be held in three positions and configured in a variety of ways for maximum flexibility.
It has gold contacts and through-hole terminal pins for a reliable connection to your circuit. The terminals are epoxy sealed against flux and dirt to protect the switch during installation and use. A chrome-plated brass actuator and nickel-plated bushings increase the component's durability.
This toggle switch is useful on a wide range of automated systems such as conveyor belts and test equipment such as voltmeters. You'll find them in manufacturing plants, garages and laboratories.

Features and Benefits

• Actuator length of 5.33 mm
• Chrome-plated brass actuator material
• Single pole double throw (SPDT) contact configuration
• Contact current rating of 400 mA at 20 V DC
• Gold-over-nickel-plated brass contact material
• Contact resistance of 20 mΩ
• Operating temperature range of -30°C to +85°C
• PCB mounting type
• UL (Underwriters Laboratory) listed standards met
• Latching switch operation
• Through-hole terminal type
