RS PRO Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole Terminal, Тумблер

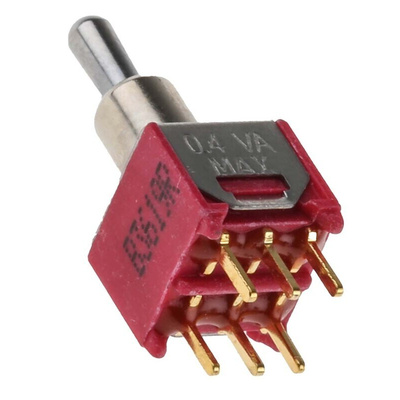

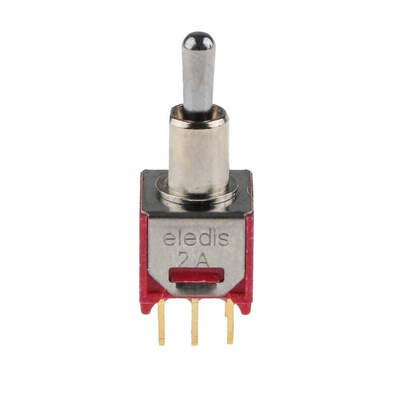

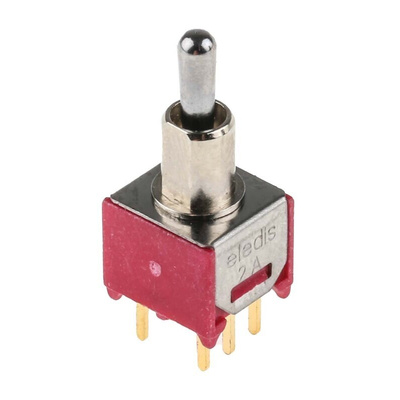

RS PRO DPDT Toggle Switch, On-Off-On, PCB

The RS PRO DPDT (double pole double throw) toggle switch lets you control two separate circuits from the same actuator (switch). Found in industrial and commercial settings, it's often used in factories and workshops. It's a useful component for those situations when panel space or board size is at a premium.

This switch has a double pole double throw functionality, which means two different circuits can be served by the same pole. It's handy in circuits that need changing voltages to be applied to connected devices. There's a contact current rating of 400 mA @ 20 V DC and a contact resistance of 20 mΩ.

As part of our trusted RS PRO range, the switch been tested for durability and consistency. It comes with epoxy sealed terminals, so dust and dirt don't get inside the component. There's also a corrosion-resistant chrome-plated brass actuator and a hardwearing diallyl phthalate case.

Features and Benefits

• Toggle switch
• DPDT (double pole double throw) contact configuration
• Switch operation of On-Off-On
• Contact current rating of 400 mA @ 20 V DC
• PCB (printed circuit board) mounting
• Through hole terminals
• Actuator length of 5.33 mm
• Chrome plated brass actuator
• Contact resistance of 20 mΩ
• Operating temperature range of -30°C to +85°C
• UL listed for safety and sustainability
• Gold-over-nickel-plated brass contacts

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
