10314-3210-000, 3M 103 Series ABS D Sub Backshell, 14 Way, Strain Relief

3M Round Cable Plastic Backshell

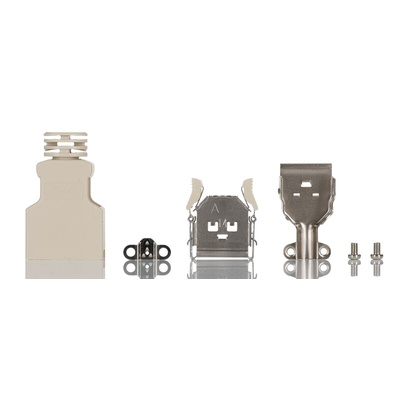

This range of 103 Series Mini Delta Ribbon (MDR) Backshells are .050" Plastic Shielded Junction Shells for Round Cable. The design of these 103 Series MDR Backshells consists of a plastic cover with straight cable exit and a two piece metal junction shell.

Features and Benefits

• UL 94V-0 plastic outer shell
• Suitable for use with IDC plugs stock no. 163-3285 (typically)

Options

• Part numbers 103xx-3210-00x for the 103 Series MDR Backshell have quick release latching and a one piece plastic shell.
• Part numbers 103xx-3280-00x for the 103 Series MDR Backshell have quick release latching and a two piece plastic shell.
• Part numbers 103xx-32J0-00x for the 103 Series MDR Backshell have thumb screws and a one piece plastic shell.

Applications

This D-Sub connector is designed to be used with round ribbon cables and can be easily terminated to the cable. As part of a complete cable system, they are often used in internal and external wiring in electronic devices, particularly in computing and robotics.

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

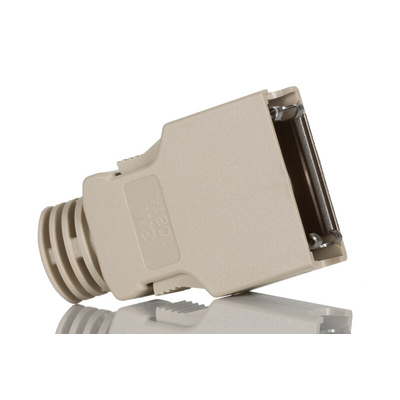

3M D-Sub Backshell, Beige Colour, ABS Outer Shell - 103 Series - 10314-3210-000

When the job calls for a protective cable termination solution for heavy-duty applications, pick this D-sub backshell from 3M. It's a handy way to terminate your round cables to a compatible 14-way IDC-type connector. The rugged ABS cover shields against impact as well as abrasion, and a two-piece metal junction shell holds your chosen connector securely. There's even a handy latching mechanism that lets you release the component in a jiffy for quick and easy disassembly.

Features & Benefits

• Nickel-plated steel shell resists corrosion for a long service life
• Flammability rating of UL 94-V0 means it stops burning in 10 seconds

Applications

• Industrial testing and measurement devices
• Instrumentation
• Robotics systems

Does this backshell come with strain relief?

Yes. Thanks to an internal cable clamp and the plastic shell's integrated strain relief, there's minimal risk of damage to your cable from pulling or twisting.

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

3M Mini D Ribbon (MDR) Connectors ..050\
