MR3A18BLBN, Key Instruments MR3000 Series Variable Area Flow Meter for Gas, 10 L/min Min, 100 L/min Max

Key Instruments Flow Meter

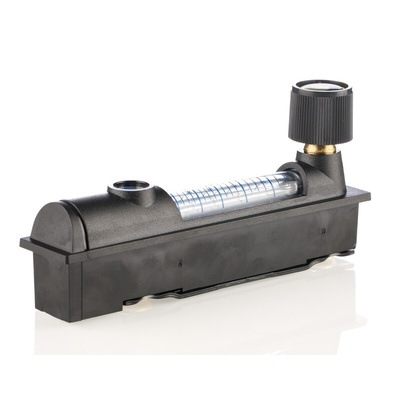

The Key Instruments MR3000 series variable area flow meter measures the gas flow rate of 10L/min to 100L/min. This is a high tech, moulded, low cost manufactured from high impact polycarbonate. It can operate at pressures of 100psig and temperatures of 150°F (65°C). These economically designed units provide high-quality and accuracy when installing properly. The durability of the polycarbonate allows the flow meter to provide years of trouble-free service. It is supplied with scales in LPM and SCFH for air, or CCM and GPH for water.

Inclusions:
Mounting brackets and built-in bezel.

Features and Benefits

Pipe diameter range is 1/8 in

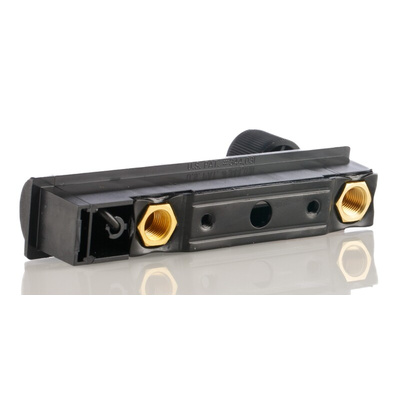

Connection type is 1/8 NPT female
Maximum operating pressure is 6.9bar
Maximum operating temperature is 65°C
high-quality construction
10:1 turn direct reading scales
Monitor or control air and water flow

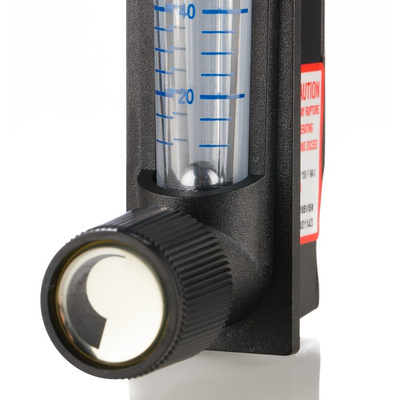

Supplied with east to read 10:1 turn direct reading scales
Fittings made of brass
Seal material is VITON W/ stainless steel

Applications

It is use with air and water
Ideally suited for OEM applications
