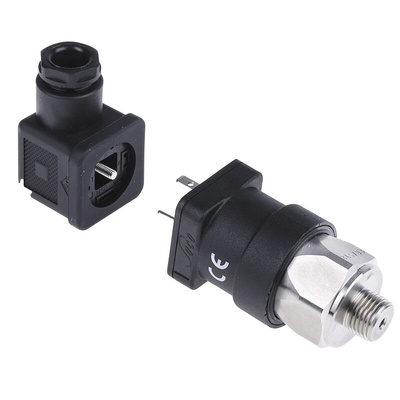

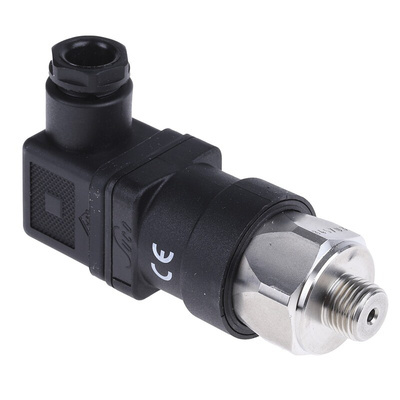

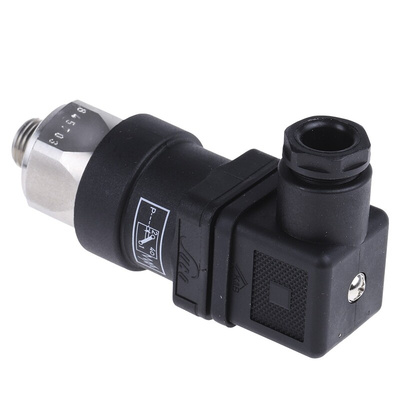

0184457031-SS, Suco 0184 Series Pressure Sensor, 0.5bar Min, 5bar Max, Relay Output, Датчик давления

G1/4 Stainless Steel Industrial Pressure Switch

Stainless steel bodied versions of the G1/4 Industrial Pressure Switches
Diaphragm operated adjustable range pressure switches with type 303 stainless steel bodies
240V 4A changeover contacts
DIN 43650 standard connector
Protection rating: IP65
Suitable Media: Air; Hydraulic Oil; Engine Oil; Heating Oil; Turpentine

Note

Adjustment of the pressure switch can be made with a 2.5mm screwdriver. To make this adjustment you must remove the electrical connection block first. When making adjustments make sure that proper safety precautions are carried out. If you intend to remove the pressure switch make sure the system is entirely relieved of pressure.

Warning

Compressed air, while generally considered a safe source of energy, must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended. Take proper safety precautions when making adjustments. Relieve the system of pressure if you are going to remove the switch.

Pressure Switches

Warning

Compressed air whilst generally considered a safe source of energy must always be treated with caution and under no circumstances be used for any other purposes than that for which it is intended.

184 SS Pressure Switch Data Sheet

Pressure Switch Instructions
