TRACOPOWER Switching Power Supply, TXL 025-05S, 5V dc, 5A, 25W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

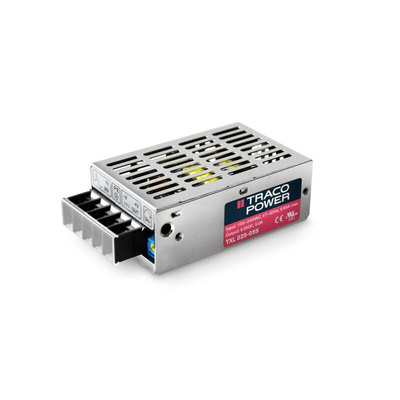

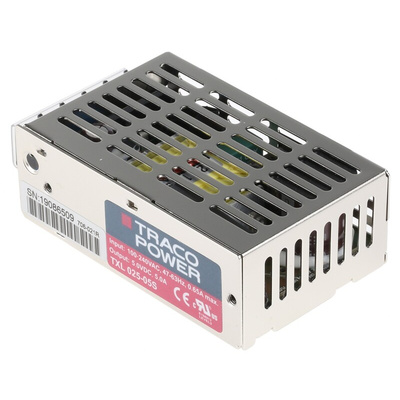

Traco Power Switching Power Supply, Chassis Mounting, 79% Conversion Efficiency - TXL Series - TXL 025-05S

Smooth out your electrical source to fit your circuit with this switching power supply from Traco Power. It takes input voltages between 85 and 264V AC and converts them to a reliable 5V DC output. Delivering a typical efficiency of 79%, the unit keeps energy wastage low. And because it uses natural convection for cooling, there's no need for an internal fan, keeping its footprint compact. As the power supply comes with overvoltage and short-circuit protection, it quickly shuts down if it detects a fault to protect against the risk of hardware damage.

Features & Benefits

• Mounts directly to a machine chassis for quick and easy installation
• Enclosed nickel-plated steel package protects sensitive elements against impacts
• Starts up in 1s, so it doesn't keep you waiting
• Leakage current of just 0.5mA ensures safe handling
• Maximum ripple voltage of 70mV to keep disruptive electrical noise to a minimum

Applications

• Device chargers
• Surveillance systems
• Electronics manufacturing

How big is this switching power supply?

With dimensions of just 79 (L) x 28.5 (W) x 51mm (D), this switching power supply fits easily into busy setups.

TXL 025 CB Series Test Certificate

TXL UL Certificate of Compliance

TXL 025-05S Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Instruction Sheet - TXL 025 Series

Application Note - TXL Series
