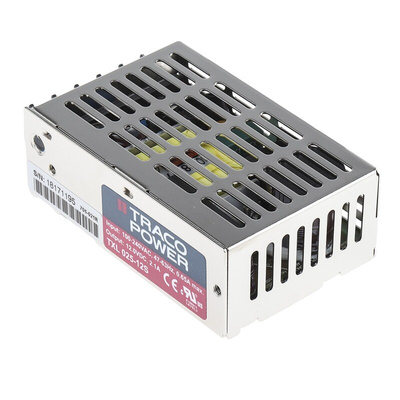

TRACOPOWER Switching Power Supply, TXL 025-12S, 12V dc, 2.1A, 25W, 1 Output, 88 → 264V ac Input Voltage, Источник питания

Traco Power Switching Power Supply, 25W Maximum Power, Chassis Mounting - TXL Series - TXL 025-12S

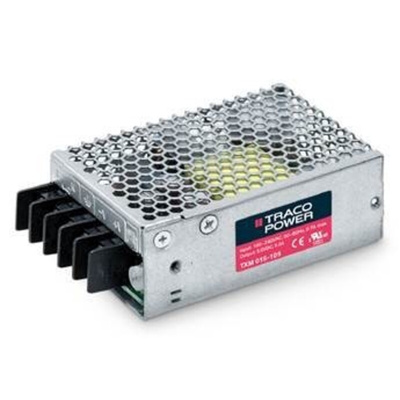

Lighten your load with this switching power supply from Traco Power. It converts a universal input voltage of 85 to 264V AC into a streamlined 12V DC output. Overvoltage protection keeps you covered during unexpected surges, up to a maximum of 140%. A typical efficiency rating of 84% means the unit wastes minimal energy as heat, even during heavy industrial work. As it mounts directly onto a chassis or frame, getting set up couldn't be simpler.

Features & Benefits

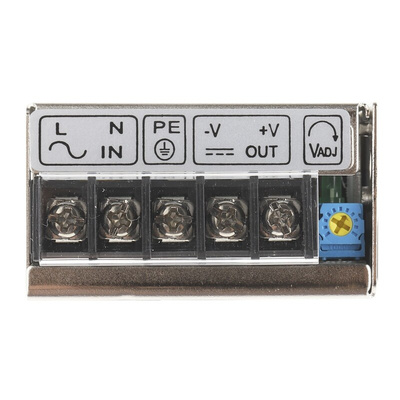

• Screw terminal blocks make secure connections that won't wiggle loose
• Fully encased in durable metal with reinforced insulation for stability
• Complies with European EMC standards and the Low Voltage Directive (LVD) to operate smoothly alongside other electronic equipment without interference
• Tips the scales at only 180g for use with small-scale devices

Applications

• Industrial machinery
• Electrical engineering
• Commercial IT settings

What temperature range does this PSU work in?

This power supply gets on with the job reliably in temperatures ranging from -20°C to +70°C.

Is this device protected from abnormal current loads?

Yes, it has built-in short-circuit protection that prevents excessive current from causing damage.

TXL 025 CB Series Test Certificate

TXL UL Certificate of Compliance

TXL 025-12S Datasheet

Industrial Power Solutions Catalogue

Selection Guide

Application Note - TXL Series

Instruction Sheet - TXL 025 Series
