3842529300, Bosch Rexroth M8 Sliding Block Connecting Component, Strut Profile 40 mm, 45 mm, 50 mm, 60 mm, Groove Size 10mm

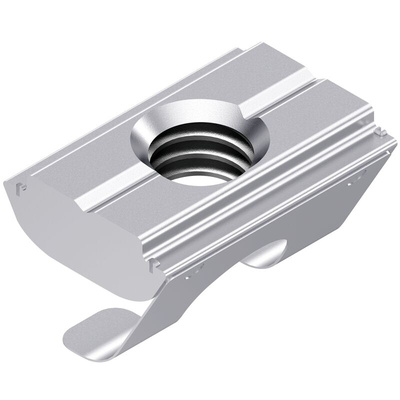

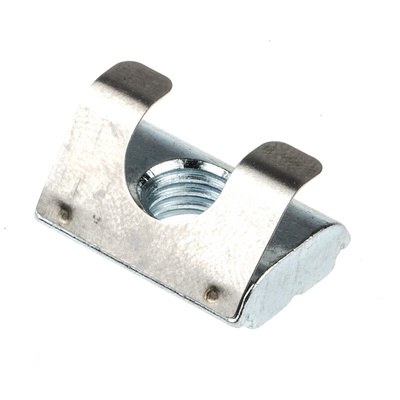

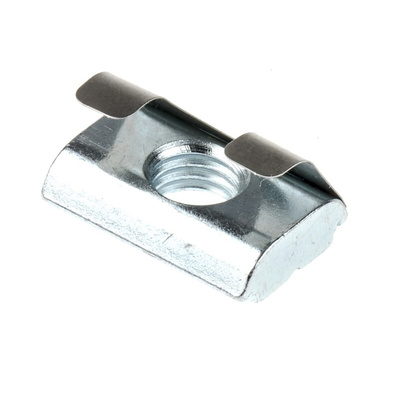

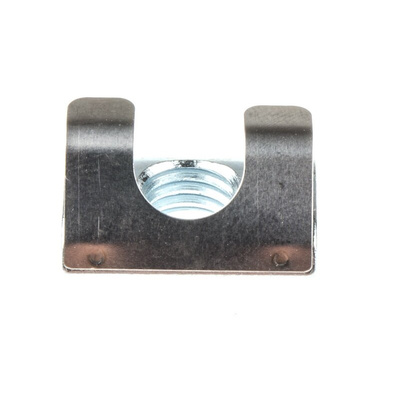

Bosch Rexroth Connecting Component, Sliding Block Type, M8 Thread - MGE Series - 3842529300

Looking for a reliable way to connect two structural elements? Choose this connecting component from Bosch Rexroth. After placing the sliding block in a 10mm-wide groove, simply swivel its spring out to secure it in position. This product is designed to have screws inserted into its threaded central hole, so you can attach it to a panel with minimal fuss. As it's made from galvanised steel, the connector's corrosion-resistant and delivers a long service life in heavy-duty applications.

Features & Benefits

• Maximum groove retention of 18,000N for a strong connection between joined elements
• Low weight of 7.74g minimises strain on strut channels
• Total length of 20mm, so it's compact

Applications

• Construction frameworks
• Plumbing systems
• Electrical conduits

How many connecting components come in a pack?

This component comes in packs of 100 to ensure you'll have plenty on hand for complex systems or multiple jobs.

Alternative for the Bosch parts

449-5137 → 276-8162

Datasheet

Catalogue - Basic Mechanic Elements
