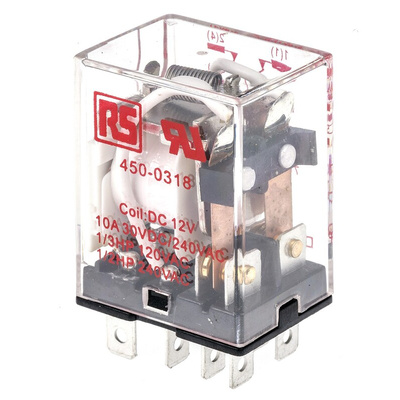

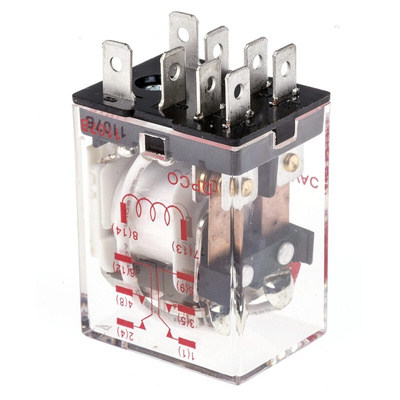

RS PRO Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT, Реле

RS PRO Non-Latching Relay, DPDT, Plug-In, 12 V DC Coil, 10 A Switching Current

This double pole, double throw (DPDT) relay from RS PRO allows you to easily make or break electrical connections to four separate output terminals. It's non-latching, so it switches back to its original position when the electric current is cut off and is commonly used for push-button applications.
This relay features silver alloy contacts, increasing durability. It also has a mechanical life of approximately 10 million cycles, and 100,000 electrical, so it's a long-lasting product you can rely on.
The relay is quick and easy to install with a simple plug-in mounting type. It's also easy to inspect, thanks to the transparent housing material.

Features and Benefits

• Power application
• Coil power of 900 mW
• Coil resistance of 160 Ω
• Coil voltage of 12 V DC
• Double pole, double throw (DPDT) contact configuration
• Silver alloy contact material
• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)
• Isolation coil to contact of 1.5 kV AC
• Life of 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles
• Operating temperature range of -45°C +70°C
• Maximum switching power (AC) of 240 V, 2.4 kVA
• Maximum switching power (DC) of 30 V, 300 W
• Plug-in mounting type
• Two poles
• General-purpose relay switching classification
• Meets Underwriters Laboratories (UL) standard E125370 for electrical components
• Switching current of 10 A
• Printed Circuit Board (PCB) pin terminal type
