RS PRO Plug In Power Relay, 230V ac Coil, 10A Switching Current, DPDT, Реле

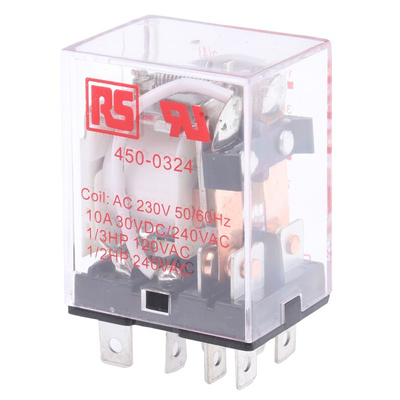

RS PRO Non-Latching Relay, DPDT, Plug-In, 230 V AC Coil, 10 A Switching Current

This relay from RS PRO allows you to easily make or break electrical connections to four separate output terminals. When the electric current is cut off, this non-latching unit switches back to its original position. This part is frequently used for push-button applications.


The relay is highly durable, as its contacts are made of rust and corrosion-resistant silver alloy. It also has an electrical lifespan of one million cycles and a mechanical lifespan of 10 million cycles, so it's built to last.


The relay's transparent housing is easy to inspect. It's also quick and easy to install thanks to its simple plug-in mounting design.

Features and Benefits

• Power application


• Coil power of 1.2 W


• Coil resistance of 12.5 kΩ


• Coil voltage of 230 V AC


• Double pole, double throw (DPDT) contact configuration


• Silver alloy contact material


• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)


• Isolation coil to contact of 1.5 kV AC


• Life of 1,000,000 (Electrical) cycles, 10,000,000 (Mechanical) cycles


• Operating temperature range of -45°C to +55°C


• Maximum switching power (AC) of 240 V, 2.4 kVA


• Maximum switching power (DC) of 30 V, 300 W


• Plug-in mounting type


• Two poles


• General-purpose relay switching classification


• Epoxy-sealed


• Meets Underwriters' Laboratories (UL) standard E125370 for electrical components


• Switching current of 10 A


• Printed circuit board (PCB) pin terminal type
