RS PRO Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT, Реле

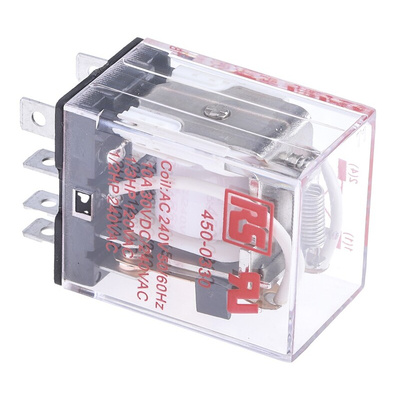

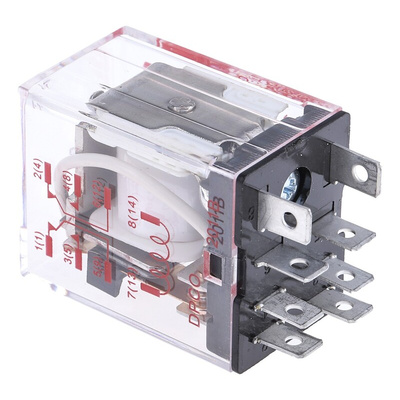

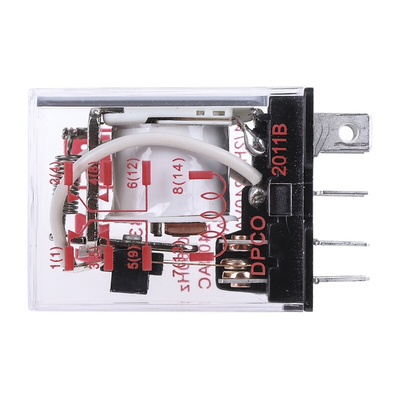

RS PRO, 240 V AC Coil Non-Latching Relay DPDT, 10 A Switching Current Plug In, 2 Pole

The RS PRO, 240 V AC coil non-latching relay DPDT (double pole double throw) is a reliable component for opening and closing circuits. Commonly found in industrial settings, it's used in video projection equipment, surge control devices and automation controllers.

This switch is non-latching, which means it's typically in a closed (NC) position without power. It moves into a normally open (NO) position when power passes through the circuit. It features a plug-in mount so it's easy to install. The component comes in clear, plastic casing with dimensions of 28 mm (L), 21.5 mm (D) and 36 mm (H). It functions in extreme temperatures, ranging from -45°C to +55°C.

Like all of our RS PRO products, it's designed to be hardwearing and reliable. It has a mechanical life of 10 million operations and an electrical life of 100,000 operations. There's a maximum contact resistance of 50 mΩ.

Features and Benefits

• Non-latching relay
• Coil voltage of 240 V AC
• Coil power of 1.2 W
• Coil resistance of 15.7 kΩ
• Isolation coil to contact of 1.5 kV AC
• Contact configuration of DPDT
• Silver alloy contacts
• Plug-in mounting
• Switching current of 10 A
• PCB pin terminal
• Two poles
• Operating temperature range of -45°C to +55°C
• Maximum switching voltage AC of 240 V AC
• Maximum switching voltage DC of 30 V DC
• Electrical life of 100,000 operations
• Mechanical life of 1,000,000 operations
• CUR E125370, UL E125370 compliant for safety and quality
• Maximum switching power of 2.4 kVA AC
• Maximum switching power of 300 W DC
• Dimensions of (L) 28 mm x (D) 21.5 mm x (H) 36 mm
