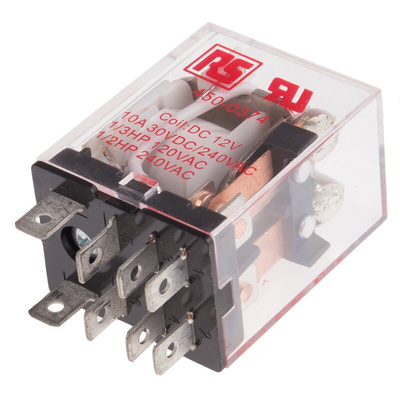

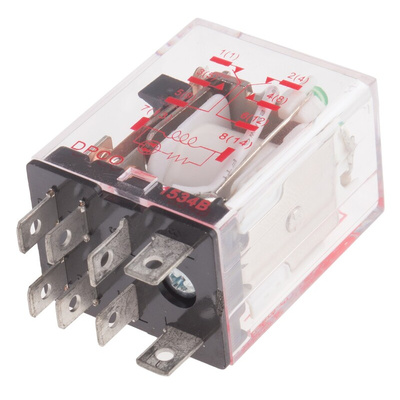

RS PRO Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT, Реле

RS PRO Non-Latching Relay, DPDT, Plug-In, 12 V DC Coil, 10 A Switching Current

Use this relay from RS PRO if you want to make or break electrical connections to four separate output terminals. It's a non-latching relay, meaning that it switches back to its original position when the electric current is cut off.


The contacts are made of silver alloy, which makes them resistant to rust and corrosion. It's a long-lasting product, as it has an electrical lifespan of one million cycles and a mechanical lifespan of 10 million cycles.


This relay is commonly used for push-button applications. It's easy to install thanks to its plug-in mounting type, while its transparent housing allows for easy inspection.

Features and Benefits

• Power application


• Coil power of 900 mW


• Coil resistance of 160 Ω


• Coil voltage of 12 V DC


• Double pole, double throw (DPDT) contact configuration


• Silver alloy contact material


• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)


• Isolation coil to contact of 1.5 kV AC


• Life of 1,000,000 (Electrical) cycles and 10,000,000 (Mechanical) cycles


• Operating temperature range of -45°C to +70°C


• Maximum switching power (AC) of 240 V, 2.4 kVA


• Maximum switching power (DC) of 30 V, 300 W


• Plug-in mounting type


• Two poles


• General-purpose relay switching classification


• LED (light-emitting diode) indicator


• Meets Underwriters' Laboratories (UL) standard E125370 for electrical components


• Switching current of 10 A


• Printed circuit board (PCB) pin terminal type

Note

Optional relay socket to work together: 245-5711
