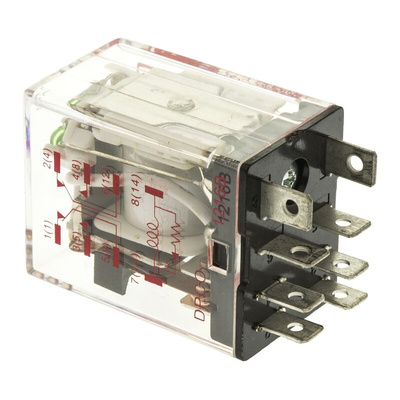

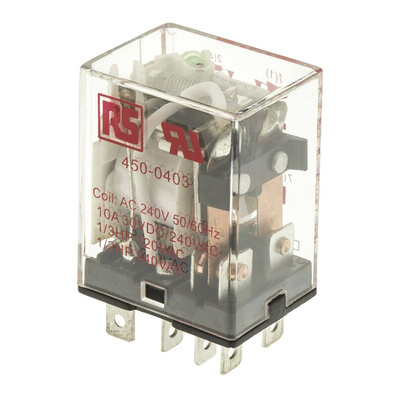

RS PRO Plug In Power Relay, 240V ac Coil, 10A Switching Current, DPDT, Реле

RS PRO Push Button General Purpose Relay (10A)

A reliable general purpose relay with a Double Pole Double Throw (DPDT) featuring the function to manually activate the relay via a push button. Perfect for field service technicians and engineers enabling the quick testing of control circuits without the need to power the coil.
The 10A general purpose relays compact design at 36 x 28 x 21.5mm makes it suitable for the use in cramped areas and the coil LED status lamp with a simple ON/OFF display is great for operation in areas with low light levels.
With a straight forward plug in design and a life span of 1000000 cycles the push button relay is an easy to use long lasting relay suitable for use in a wide range of applications.
Applications include power, control panel, sequence control, direct load switching, surge and industrial automation controllers.

Features and Benefits

• General purpose relay


• DPDT configuration


• LED power indicator


• Socket mount


• Coil voltage of 240 V ac


• Coil resistance of 15700 Ω


• Coil power of 1.2 VA


• Maximum switching current 10 A


• Maximum switching power 2400 VA/ 300W


• Maximum switching voltage 250 V ac/ 125 V dc


• Silver contacts


• Electrical life 100000 cycles

Standards and Approvals: UL E125370, CUR E125370
