RS PRO Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT, Реле

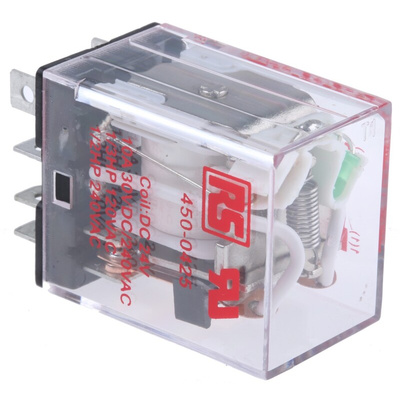

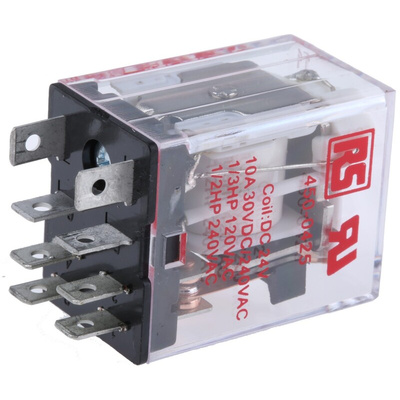

RS PRO Non-Latching Relay, DPDT, Plug-In, 24 V DC Coil, 10 A Switching Current

Need a reliable way to make or break electrical connections to four different output terminals? Choose this double pole, double throw (DPDT) relay from RS PRO. When the current is cut off, this non-latching relay switches back to its original position, making it easy to use.


This durable unit has contacts made of silver alloy for resistance to corrosion in harsh environments. Thanks to its long mechanical life of 10 million cycles and its electrical life of one million cycles, it's a reliable product that will last a long time.


For ease of use, the relay features a simple plug-in mounting type and a transparent housing that makes it easy to inspect. This part is often used for push-button applications for micro-controller buttons and keyboards.

Features and Benefits

• Power application


• Coil power of 900 mW


• Coil resistance of 650 Ω


• Coil voltage of 24 V DC


• Double pole, double throw (DPDT) contact configuration


• Silver alloy contact material


• Dimensions of 28 (length) x 36 (height) x 21.5 mm (depth)


• Isolation coil to contact of 1.5 kV AC


• Life of 1,000,000 (Electrical) cycles, 10,000,000 (Mechanical) cycles


• Operating temperature range of -45°C to +70°C


• Maximum switching power (AC) of 240 V, 2.4 kVA


• Maximum switching power (DC) of 30 V, 300 W


• Plug-in mounting type


• Two poles


• General-purpose relay switching classification


• LED (light-emitting diode) indicator


• Meets Underwriters' Laboratories (UL) standard E125370 for electrical components


• Switching current of 10 A


• Printed circuit board (PCB) pin terminal type
