450-8968, Schurter RS PRO, 2 Position DP Rotary Switch, 6.3 A, Solder, Поворотный переключатель

Rotary Voltage Selector

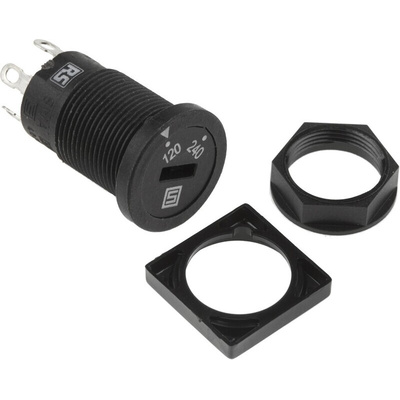

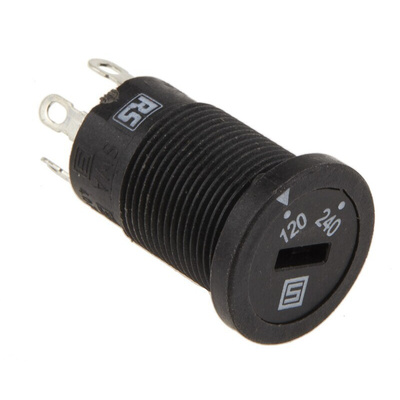

A rotary action two-position voltage selector switch designed to select between series (240V) and parallel (120V) operation of twin primary transformers. The switch is supplied with a square bezel to provide full compatibility with the 13mm fuseholders (see Fuses section)

Suitable for use in Class II equipment
Connection via solder terminals

Approvals

VDE, SEMKO, UL, CSA, SEV

RS PRO, 2 Position DP Rotary Switch, 6.3 A, Solder

With a smooth turning action and high-quality design, this rotary switch allows you to effortlessly alternate between 240 V and 120 V. These voltage levels ensure compatibility with Class II equipment which includes consumer appliances such as hairdryers, DVD players, televisions and computers.

This switch features contacts made from a copper-aluminium alloy for a more reliable product that will last you a long time. By combining aluminium’s strength and durability with the electrical conductivity of copper, they achieve a 6.3 A current rating to minimise the risk of burnout. Panel mounted, it can be easily installed and soldered into place for a secure connection. This switch is supplied with a square bezel for use with fuse holders.

This product meets several international standards for safety and performance, including the Canadian CSA and Swedish SEMKO standards, the Swiss SEV standard, the American UL certification and the German VDE standard.

Features and Benefits

• Copper aluminium contacts
• Double pole contact configuration
• Voltage rating of 240 V
• Contact current rating of 6.3 A
• Two switch positions
• Two contacts
• Dimensions of 15.2 mm (Dia.) x 25.8 mm
• Operating temperature range of -40°C to +85°C
• Compatible with Class II equipment like hairdryers, DVD players and televisions
• RoHS (Restriction of Hazardous Substances) compliant so no hazardous substance is present in excess of 0.1%
• Certified by the Canadian Standards Association (CSA), Swedish Electric Equipment Control Office (SEMKO), Swiss Electrotechnical Association (SEV), American Underwriters Laboratories (UL) and the German Verband der Elektrotechnik (VDE)
• Panel mounting
• Solder terminals

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
