Steinbach & Vollman Camlock, 25mm Panel-to-Tongue, 20.2 x 20.2mm Cutout, Key Unlock, Замок

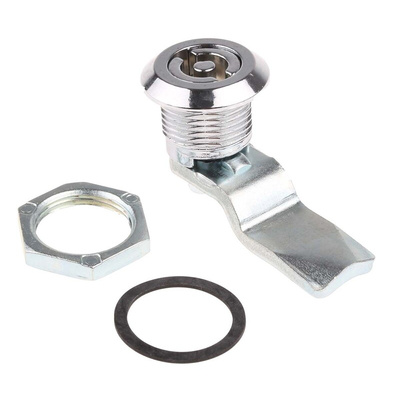

Steinbach & Vollman Security Spanner Lock

The Steinbach & Vollman security spanner lock is an effective enclosure-locking device with a 5mm, double barb lock configuration. The cam provides a slide compression fit and operates through an angle of 90°. The panel cut-out size is 22.2mm of length and 20.2mm of width. It is a highly reliable and excellent quality lock.
Supplied with:
0.3mm thick nitrile head gasket and nut.
Note:
Key not supplied.

Features and Benefits

Bright, chrome plated finish cam, lead-in ensures compression of sealing gasket
Maximum panel thickness 6mm
Grip length 25mm

Applications

Doors
Cupboards
Fire and alarm panels
Small enclosures
Drawers
Cabinets

Dimensional Drawing - Key

Datasheet
