70002623, Lapp 2 Core Power Cable, 0.75 mm², 1m, Grey Polyurethane PUR Sheath, Spiral Cable, 500 V, Кабель

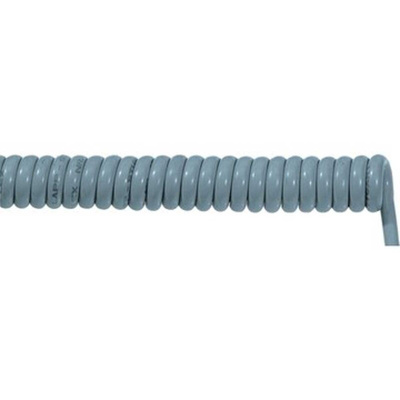

SPIREX® ÖLFLEX® 400P coiled cord

From Lapp, this Spirex Olflex series multi-core cable is a versatile solution in cable management for industrial environments. With excellent mechanical and chemical resistance, the cable is suitable for robust applications in challenging conditions.

The primary feature of the Spirex Olflex cable is its flexible coiled shape. The 'curly cord' is able to extend to three times it's non-extended length, which makes it ideal for portable applications and moving machinery. The fact that the cable coils back to its original shape after stretching means there is less chance of dragging and tangling, resulting in less wear and tear.

The fine strand multicore cable has a PUR sheath which is resistant to abrasion and notching. This durable insulation ensures maximum protection over a long use life.

Features and Benefits

• Resistant to microbes and hydrolysis
• Resistance to a variety of mineral oils
• Resistance to diluted acids and aqueous alkaline solutions
• High chemical-resistance to benzols and benzenes
• Abrasion resistant
• UV resistant
• Operating temperature range when moving: +5 °C to +50 °C
• Nominal voltage: 300 / 500 V

Applications

The robust nature of the Spirex Olflex makes it ideal for use in arduous conditions. This versatile cable is often used in;

• Power Management
• Mechanical engineering
• Automation and control

Standards

Core in accordance with VDE 0812/0285, sheath in accordance with VDE 0250/0285, conductor construction in accordance with VDE 0295//5

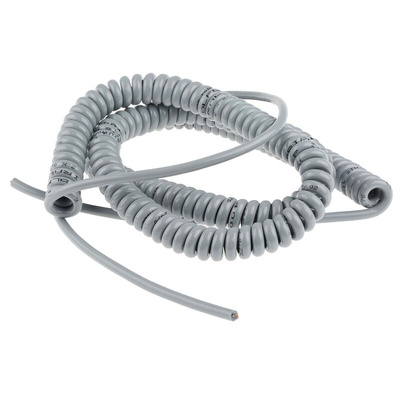

LAPP Power Cable, 1m Coiled Length, 3m Extended Length - ÖLFLEX Series - 70002623

Need a robust component to power your machines or tools? Choose this power cable from LAPP. Its tough PUR outer sheath resists abrasion, chemical and oil exposure so it's ideal for use in harsh industrial environments. To let you move easily as you work, the cable uncoils from a 1m to a 3m length. When it's not being stretched, it returns neatly to its coiled shape without tangling.

• Two cores of bare copper ensure highly-efficient energy transfer through the cable
• 18AWG size for easy compatibility
• 0.75mm² cross-sectional area makes it suitable for use in compact setups
• Broad operating temperature range between +5°C and +50°C for use in demanding environments

Applications

• Mechanical engineering
• Automotive workshops
• Machine power solutions

Is this power cable insulated?

Yes, the product is sheathed in PVC, so it's safe to handle without the risk of electric shocks.
