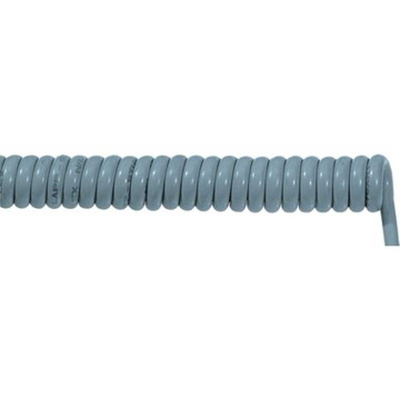

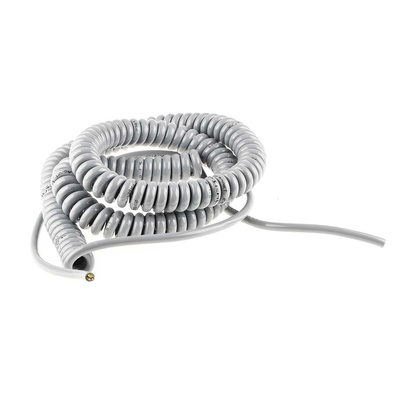

70002688, Lapp 3 Core Power Cable, 1.5 mm², 1m, Grey Polyurethane PUR Sheath, Coiled, 500 V, Кабель

SPIREX® ÖLFLEX® 400P coiled cord

From Lapp, this Spirex Olflex series multi-core cable is a versatile solution in cable management for industrial environments. With excellent mechanical and chemical resistance, the cable is suitable for robust applications in challenging conditions.

The primary feature of the Spirex Olflex cable is its flexible coiled shape. The 'curly cord' is able to extend to three times it's non-extended length, which makes it ideal for portable applications and moving machinery. The fact that the cable coils back to its original shape after stretching means there is less chance of dragging and tangling, resulting in less wear and tear.

The fine strand multicore cable has a PUR sheath which is resistant to abrasion and notching. This durable insulation ensures maximum protection over a long use life.

Features and Benefits

• Resistant to microbes and hydrolysis
• Resistance to a variety of mineral oils
• Resistance to diluted acids and aqueous alkaline solutions
• High chemical-resistance to benzols and benzenes
• Abrasion resistant
• UV resistant
• Operating temperature range when moving: +5 °C to +50 °C
• Nominal voltage: 300 / 500 V

Applications

The robust nature of the Spirex Olflex makes it ideal for use in arduous conditions. This versatile cable is often used in;

• Power Management
• Mechanical engineering
• Automation and control

Standards

Core in accordance with VDE 0812/0285, sheath in accordance with VDE 0250/0285, conductor construction in accordance with VDE 0295//5

LAPP Power Cable, 3kV Test Voltage, PVC Insulation - ÖLFLEX Series - 70002688

Link your equipment to its energy source with this power cable from LAPP. Its 500V voltage rating makes it ideal for use in low-voltage applications. The flexible coiled construction with a cross-sectional area of 1.5mm² means it's a space-efficient choice for your setup. As it extends to up to three times its non-stretched length, it's the right match for moving machinery. Thanks to PVC insulation, this cord keeps electrical hazards at bay to ensure safe operation.

Features & Benefits

• Highly conductive copper conductor for a reliable connection
• Resists abrasion and chemicals, making it fit for use in harsh environments
• Returns to original shape after stretching, so there's less chance of snarl-ups

Applications

• Mechanical engineering
• Medical equipment
• Automotive industry

How long is this power cable?

This unit is 100cm long when its spiral is unextended and 300cm long at full stretch, giving plenty of reach to suit your needs.
