73220224, Lapp 500mm 6 Core Coiled Cable 0.14 mm² CSA Polyurethane PUR Sheath Black, 5.4mm OD, Кабель

4516953
Номер производителя: 73220224Производитель: Lapp
Цена за шт.
18654.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

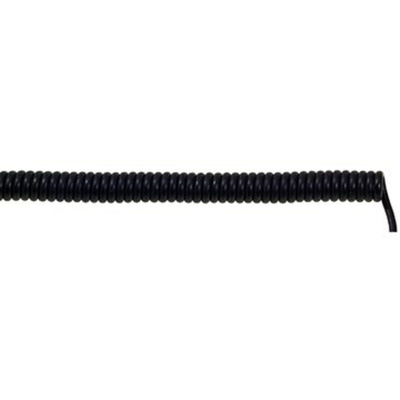

SPIREX® DATA spiral cable

From Lapp, this Spirex Data cable is a data and control cable with a spiral construction that offers greater flexibility. The coiled cable is abrasion resistant, and can extend up to four times its closed spiral length, resulting in a versatile and robust connection solution.

The Spirex cable is also screened, which means it is suitable for use in areas where electrical interference might be a concern. It also features oil-resistance, for extra protection when used in challenging environments.

Data spiral cables are used wherever shielded cables with compact dimensions are required.

Features and Benefits

• Shielded with a Cu covering
• Mechanical resistance
• Abrasion and cut resistance
• Oil resistance
• Friction-proof outer sheath
• Very high flexibility

Applications

This coiled data cable is ideal for electronic applications where space saving and flexibility is a a requirement. It is often used in;

• Measurement and control engineering
• Handling and measurement equipment
• Conveyor and transport systems
Accessories

Lapp Spirex cables should be used alongside accessories that match their capabilities. As such, Lapp provides a range of easy-to-install cable glands.

• 560-707 is an M12 Skintop Click Cable Gland
• 475-075 is an M16 Skintop Click Cable Gland
• 475-057 is an M20 Skintop Click Cable Gland
• 475-097 is an M25 Skintop Click Cable Gland
• 560-662 is an M32 Skintop Click Cable Gland

Standards

Core ID code in accordance with DIN 47100; conductor construction in accordance with VDE 0295/6

Техническая спецификация
pdfLAPP Cable to Gland Cross Reference
pdfCables Selection Guide
Внешний диаметр:
5.4мм
Длина:
500мм
Жилы:
18/38
Кабельные формы:
Multicore
Катушка диаметр:
5.4мм
Количество нитей:
18
Количество ядер:
6
Материал изоляции:
ПВХ
Материал оболочки:
Полиуретан PUR
Материал проводника:
Голая медь
Номинальное напряжение:
250 В
Площадь поперечного сечения:
0.14 мм²
Рабочая температура - максимальная:
+50°C
Рабочая температура - минимальная:
-5°C
Размеры нитей:
38 AWG
Расширенная длина:
Цвет оболочки:
Черный
