1202095031, Brad from Molex Cat5e Ethernet Cable, F/UTP, Black PUR Sheath, 100m, Кабель

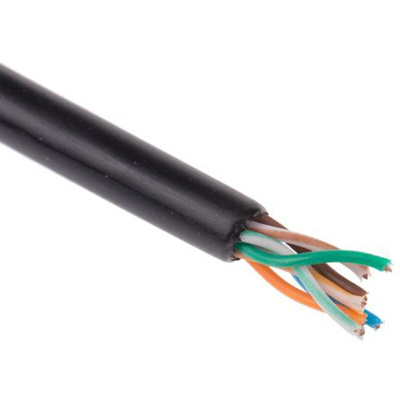

Brad Cat5e Stranded PUR Cable

This is a Cat 5e Ethernet cable is for use in harsh, industrial environments where cables may be subject to cutting fluids, oil-based fuels or chemicals, grease and general contaminants.

Features and Benefits

·Stranded conductor
·Flexible cable contained in a polyurethane (PU) jacket
·Allows transmission lengths of 100m

Product Application Information

This Cat5e cable can be used in horizontal and building backbone applications. It supports current and future Category 5e applications, such as: 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI and ATM.
This PUR cable is specifically identified for industrial environments where connectors may be subject to cutting fluids, oil-based fuels or chemicals, grease and general contaminants

Why choose Cat5e over Cat5 cables

Cat5 and Cat5e are virtually identical and cannot be told apart by thickness, colour or material. Cat5e cables sometimes have a more durable protective jacket making them suitable for use for many more years than a Cat5 cable. Within the jacket the wiring inside tends to be much tightly twisted making them more resistant to crosstalk.
Cat5e cables are able to support networks that run up to 1 gigabyte per second making them ideal for use within IT where the fast transference of data is essential.
Cat5e cables also have a higher bandwidth of 350 MHz which means they can carry a lot more information from one system to another than Cat5 cables can.

What is crosstalk?

Crosstalk is the electromagnetic interference that occurs between cables when they are close to each other. This interference can lead to errors in data transmission.

Note

Relevant characteristics detailed in tables are with respect to +20°C.

Standards

ISO/IEC11801, IEC1156

Brad from Molex F/UTP Cat5e Ethernet Cable, 100m Length, 26AWG - RJCAB-C

Use this Cate5e (category 5 enhanced) Ethernet cable by Brad from Molex to quickly connect your devices to the internet. It's made up of seven twisted wire pairs and has a foil shield that reduces EMI (electromagnetic interference). As the cable has a low attenuation level of 3.1dB (decibels), you can expect low signal distortion and a reliable connection. It can support networks that run at up to 1Gbps (gigabytes per second), so it's ideal for applications that rely on the fast transfer of data.

• Unterminated ends for quick and easy installation
• Capacitance of 52pF/m (farad per metre) to collect and store high levels of energy
• Reel length of 100m means it can be cut down to suit your system needs

Applications

• Manufacturing equipment
• Data transfer
• Audio and visual communication

Where can I use this Cat5e Ethernet cable?

This cable's durable PUR outer sheath protects it from chemical exposure and electrical hazards, which makes it suitable for use in harsh industrial environments. You can use it in systems where exposure to fuels or oils is likely, such as in factories and laboratories.

Standards

ISO/IEC11801; IEC1156
