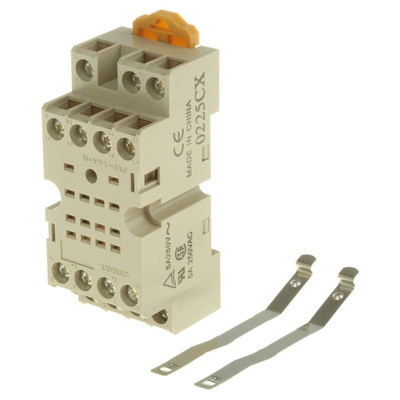

H3YN-4PDT, Omron Mounting Kit For Use With H3Y4 Series

Omron Miniature Timer

The Omron H3Y4 series miniature timer has 4 timing ranges between 0.1 seconds to 10 minutes and multiple operating modes. It has intuitive programming which makes this timer easy to use and quick to configure. It has multiple operating modes such as On delay, interval delay, flicker OFF start, flicker ON start in the range of 0.1 seconds to 10 minutes. Its low cost and high performance make it ideal for a wide range of applications in process control environments.

Features and Benefits

4PDT switching configuration
1% FS (maximum)
AC voltage ratings like 24VAC, 100VAC to 120VAC and 200VAC to 230VAC
DC voltage ratings like 12VDC, 24VDC, 48VDC, 100VDC to 110VDC, 125VDC
4 timing ranges like 0.1 second to 1 seconds, 1 second to 10 seconds, 0.1 minute to 1 minutes and 1 minute to 10 minutes

Applications

Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

IP40 rated
CE approval
RL certified
CSA certified
EN61812-1
IEC60664-1
