Jumo Temperature Indicator

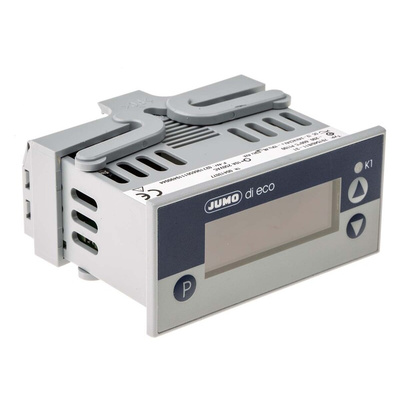

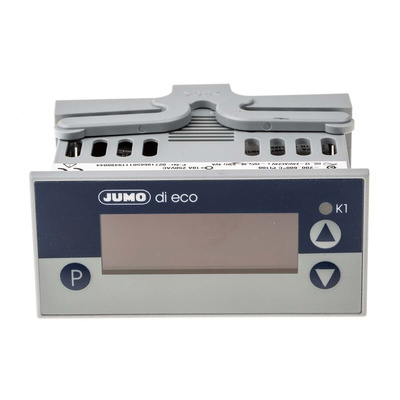

The Jumo di eco series temperature indicator is used for visualizing temperatures acquired through Pt100, Pt1000, or KTY2X-6 resistance thermometers in a 2-wire circuit. The measurement is displayed on a 3-digit display with red background lighting. Limit infringements can be monitored with a 10A changeover relay and signalled via an LED. The 3 buttons on the front panel facilitate configuration, switching differential and alarm suppression. The screw terminals on the back of the instrument make an electrical connection.
Accessories:
PT100 sensor (RS stock no. 454-2227), 6 x 50 mm protective tube, 2.5 m connection lead, silicone, -50 to +180 °C
Note:
Supply Voltage and Frequency are 12 → 24 Vdc / 24 Vac 50/60 Hz.
Features and Benefits
Microprocessor control
Adjustable switching hysteresis
Configurable alarm suppression
Code-protected parameter level
Symbols for temperature unit, minutes and seconds in display
Each parameter can be enabled individually for operation
Simple mounting
Programmable switch-on delay after power ON

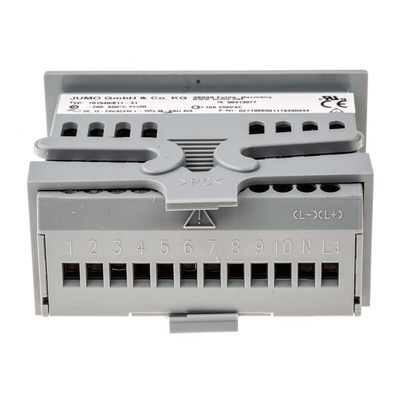

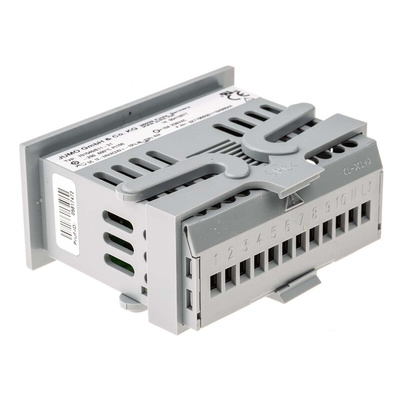

Electrical connection via screw terminals
Size is 76mm x 36 mm
Certifications
cUL approved
UL approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
