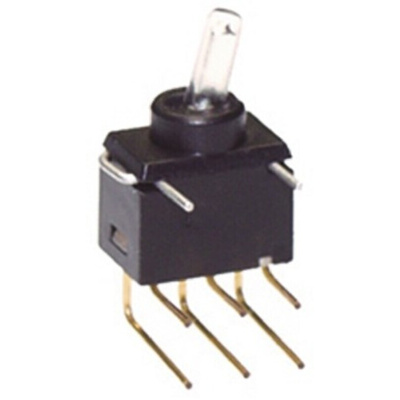

G-12CHR, NKK Switches Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, Тумблер

Fully Illuminated Miniature Toggle Switches

Outstanding visual identification of toggle lever in all environments
Unique switching mechanism gives reliable switching and smooth operation
Sliding twin crossbar contact mechanism gives high contact reliability at low voltage and current
Totally sealed body construction prevents contact contamination
Epoxy sealed terminals prevent entry of flux, solvents, etc and provides mechanical support
2.54 x 2.54mm terminal spacing conforms to standard PCB grid spacing

Note

LED circuit is isolated and requires external power source. Polarity marks are on the bottom of the switch. If the source voltage (Vs) exceeds the rated voltage, a ballast resistor is required.
