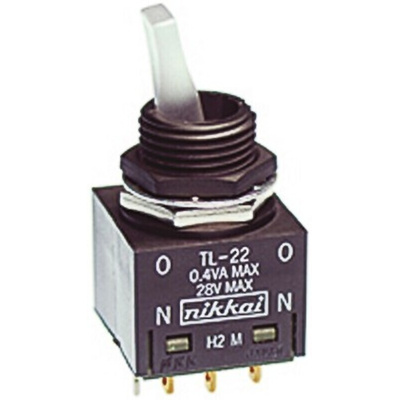

TL-22H2SKNMG4, NKK Switches Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, Тумблер

Fully Illuminated Toggle Switches

Outstanding visual identification of toggle lever in all environments
Unique switching mechanism gives reliable switching and smooth operation
High insulating barriers protect against crossover
Interior o-ring protects contacts from oil, dust, water and other contaminants
Threaded bush mounting - M12
Solder tag connections, epoxy sealed to prevent entry of flux, solvents, etc and provides mechanical support
Withstands 20kV ESD minimum
UL94V-0 flammability rated base

Note

LED circuit is isolated and requires external power source. Polarity marks are on the bottom of the switch. If the source voltage (Vs) exceeds the rated voltage, a ballast resistor is required.

NKK TL Series Fully Illuminated Toggle Switches Data Sheet
