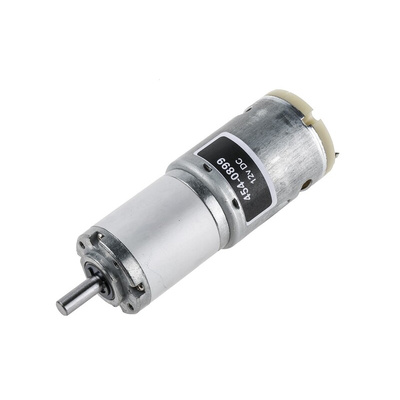

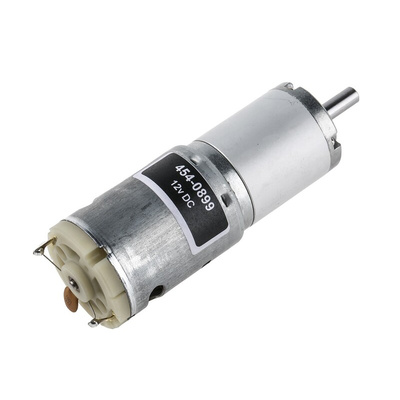

RS PRO Brushed Geared DC Geared Motor, 19.8 W, 12 V dc, 1.2 Nm, 24 rpm, 6mm Shaft Diameter, Двигатель

RS PRO Brushed Gear DC Motor, 19.8 W, 12 V, 1.2 Nm, 24 rpm, 6 mm Shaft Diameter

This RS PRO DC geared motor is used to convert electrical energy to mechanical energy in low-speed applications. You're guaranteed to have good control over device movement without losing any system efficiency, as the gearbox offers a high amount of torque.


The unit uses sintered bronze bearings, which allow for high torque transfer without increasing noise during operation. A high-quality motor means it's built to last and will deliver consistent performance throughout its service life. You can install it in line with the machine, so it's ideal for use in installations where space is limited.


This part offers a number of reduction ratios, making it useful for developing prototypes or models in Research &
Design projects. Thanks to the gearbox's planetary gearhead construction, the motor is useful for handling variable loads in intermittent applications, such as controlling the movement of textile machinery, dental chairs and rotary tables.

Features and Benefits

• Iron core construction


• Current rating of 2.81 A


• Brushed gear DC motor


• Spur gearhead type


• Length of 94.3 mm


• Width of 35.8 mm


• Maximum output torque of 1.2 Nm (Newton metres)


• Output speed of 24 rpm (revolutions per minute)


• Power rating of 19.8 W


• Shaft diameter of 6 mm


• Supply voltage of 12 V DC

RS PRO Datasheet
