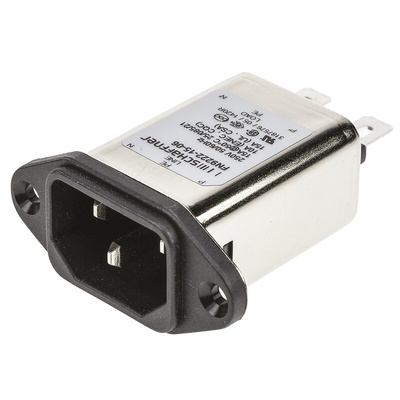

Schaffner 15A, 250 V ac Male Panel Mount IEC Filter FN9222-15-06, Faston None Fuse, Фильтр

FN9222 IEC 950 - Compact High Performance

From Schaffner the FN9222 IEC inlet filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor. A wide selection on amperage ratings, output connections, mounting possibilities and filters are designed to offer you the desired solution.

Can be used in a wide range of applications such as portable electrical & electronic equipment, household equipment, single-phase & switch-mode power supplies, test & measurement equipment, medical equipment & rack mounting equipment.

Excellent performance/size ratio
Frequency DC to 400 Hz
Optional medical versions (B type) according to IEC/EN 60601-1
Snap-in versions (S & S1 type)
Hot inlet versions (HI type)
Optional overvoltage protection (Z type)
Different output connections offering maximum flexibility for assembly

Approvals

UL listed, CSA certified (all types); VDE, SEV, SEMKO (up to 10A max.)

Schaffner Inlet Filter

The Schaffner IEC inlet filter is a male type, panel mount power entry module with excellent filter attenuation in a small form factor. It has a supply voltage rating of 250VAC with a high-performance current rating of 15A. It has a wide selection on amperage ratings, output connections, mounting possibilities. The operating frequency of this filter ranging between 0Hz and 400Hz.

Features and Benefits

Excellent performance/size ratio
Fuse drawer with easy access
Fast-On terminals
Maximum leakage current is 373μA
Different output connections offering maximum flexibility for assembly
Operating temperature ranging between -25°C and 85°C
Connector type C14
Exceptional conducted attenuation performance,

Applications

Electrical and electronic equipment
Household equipment
Single-phase and switch-mode power supplies
Test and measurement equipment
Rack mounting equipment

Certifications

UL approved
CSA certified
VDE
SEV
SEMKO
IP40 rated

Approvals

UL Listed; CSA Certified; 10 A max. for VDE; SEMKO

Schaffner FN92XX & FN32X Series

These high performance filters contain an additional capacitor to give a class X2 capacitor between live and neutral at both the filter input and output.
