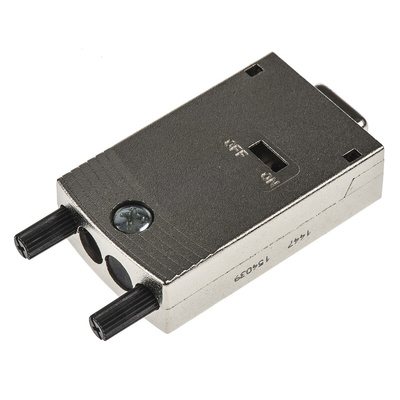

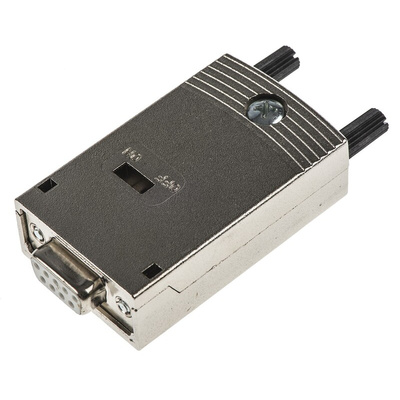

154039 / 154039-E, ERNI 154 9 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

ERNI ERbic CAN Bus CAN Bus D-Sub Connectors

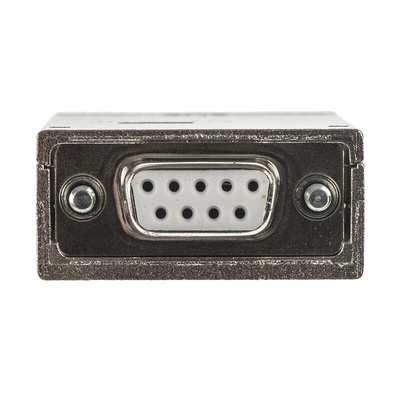

ERbic CAN Bus CAN Bus connectors with a 9 pin female D-sub connector interface. The d-sub connectors have 4-40 UNC mounting screws. For more information on these ERbic CAN Bus CAN Bus connectors please see refer to data table and manufacturers datasheet.

Approvals

UL E 87403

Erbic® bus systems D Type Connectors

Interface plug connectors from the Erbic® range have compact external dimensions and a horizontal cable connection.
The ERbic® MAX range is a slimline solution with metal housing and an axial cable exit, ideal for tough conditions with high EMC requirements.
An integrated switch, accessible from the outside, lets you switch from node to terminating modes with active termination (terminating resistance).
The switch is positioned opposite the housing to prevent accidental activation.
Models with IDC clamps are available for quick and easy connection to the swivel cord.

Bus Interface Connector System Catalogue
