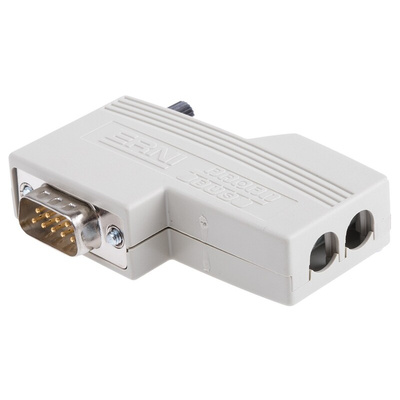

144037 / 144037-E, ERNI ERbic 9 Way Right Angle Cable Mount D-sub Connector Plug, Разъем

Profibus switch

Plastic housing models have a horizontally placed cable output
MAX housings have an axial oriented cable output.

Approvals

UL E 87403

Erbic® bus systems D Type Connectors

Interface plug connectors from the Erbic® range have compact external dimensions and a horizontal cable connection.
The ERbic® MAX range is a slimline solution with metal housing and an axial cable exit, ideal for tough conditions with high EMC requirements.

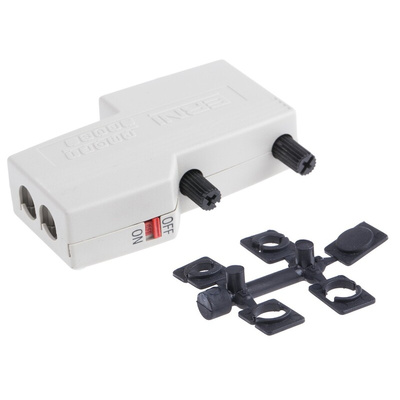

An integrated switch, accessible from the outside, lets you switch from node to terminating modes with active termination (terminating resistance).
The switch is positioned opposite the housing to prevent accidental activation.
Models with IDC clamps are available for quick and easy connection to the swivel cord.

ERbic Series Drawings
