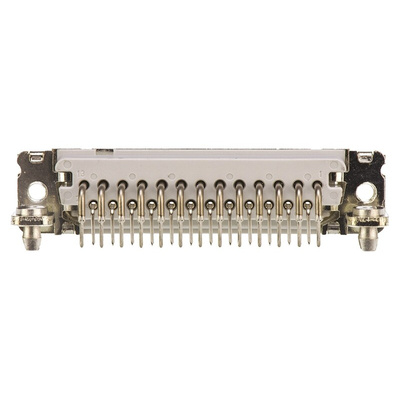

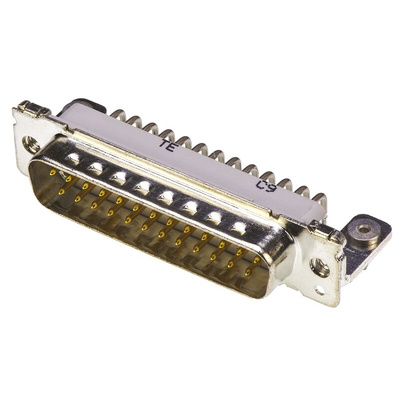

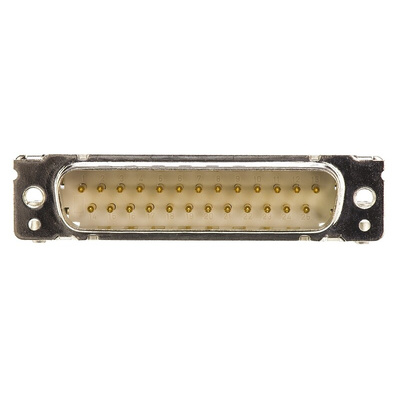

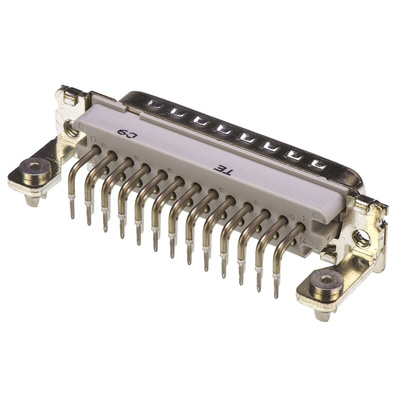

8-1393480-7, TE Connectivity Amplimite HD-20 25 Way Right Angle Through Hole D-sub Connector Plug, 2.76mm Pitch, with 4-40 UNC, Разъем

4543769
Номер производителя: 8-1393480-7Производитель: TE Connectivity
Цена за шт.
3447.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

D-SUB Eurostyle Footprint HD-20 90° internal thread

Constructed to DIN 41494, 3TE module, 15.24 mm width
Soldered connection with 0.7 mm bore Ø
With integrated PCB mounting and earthing
Nut UNC 4-40 in the metal flange
Metal cover
Plug-compatible with connector systems to MIL-C-24308 and DIN 41652

Standards

DIN 41652

Approvals

UL, CSA

TE Connectivity AMPLIMITE D-Subminiature Connectors

Техническая спецификация
pdfDimensional Drawings
pdfDatasheet
