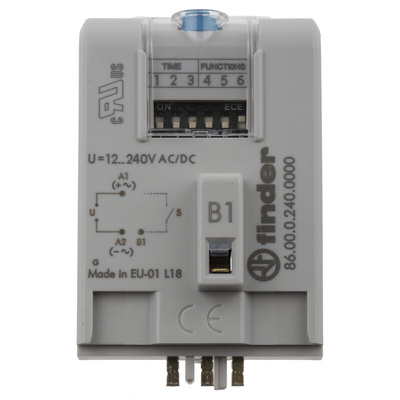

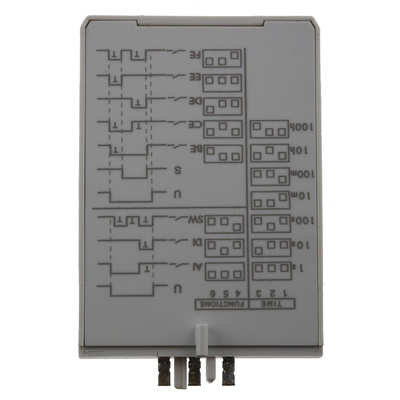

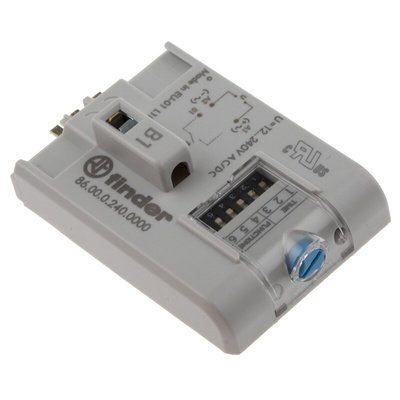

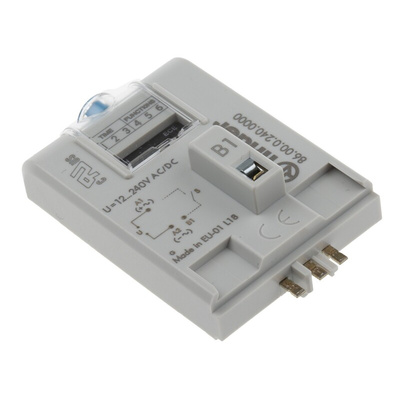

86.00.0.240.0000, Finder Pluggable Function Module, Timer Module

Finder multi-function Timer Relay

The Finder multi-function timer relay is solid-state, compact equipment with 230VAC/DC coil. It is suitable for controlling the operation of equipment, machinery, systems or processes for a wide range of industrial applications. This timer relay can be installed into new and existing applications in an extremely hassle free-way. This timer relay performs delay functions like ON-delay, interval, symmetrical flasher (starting pulse ON), OFF-delay with control signal, ON and OFF delay with control signal, interval with control signal ON, interval with control signal OFF, and interval with control signal ON and OFF in the range of 0.05 seconds up to 100 hours. Its affordability, optimum space management, and high-performance make it ideal for several applications in process control environments.

Features and Benefits

Multi-scale timing ranges from 0.05 seconds to 100 hours like 0.05 seconds to 1 seconds, 0.5 seconds 10 seconds, 5 seconds to 100 seconds, 0.5minutes to 10 minutes, 5 minutes to 100 minutes, 0.5 hours to 10 hours, 5 hours to 100 hours
Operating temperature ranges from -20°C to 50°C
Atex versions available
Screw type terminal connection
Plug in type mounting
LED indicator

Applications

Machines for ceramics
Machines for paper processing
Printing machines
Packaging machines
Wood processing machines
Milk processing plant
Textile machines
Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP20 rated
EAC certified
cRUus certified
CE certified
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN55022

Datasheet
