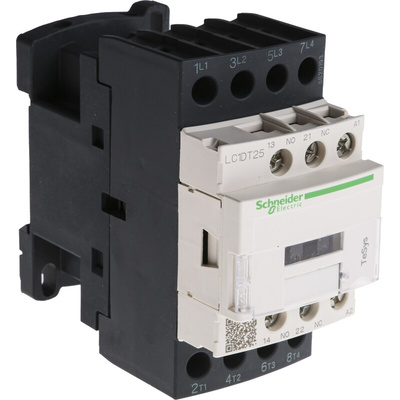

LC1DT25P7, Schneider Electric LC1D Series Contactor, 230 V ac Coil, 4-Pole, 25 A, 4NO, 690 V ac, Контактор

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

• AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.


• AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

Schneider Electric Contactor, 4 to 19ms Opening Time, 12 to 22ms Closing Time - TeSys D Series - LC1DT25P7

Switching circuits on and off is a cinch with this contactor from Schneider Electric. When its internal electric coil is energised or de-energised, it opens or closes the contacts causing the machine to power up or shut down. An opening time of 4 to 19ms and a closing time of 12 to 22ms means you can rely on this unit for rapid power switching. Thanks to built-in auxiliary contacts, which track the position of the main ones, you can give a power boost to the capacity of this contactor when needed.

Features & Benefits

• DIN rail mounting for tool-free installation
• Power dissipation per pole of 1.56W for energy-efficient operation
• Integrated protective cover to help prevent electric shocks

Applications

• Medical technology
• Electrical engineering
• HVAC systems
• Power plants

How durable is this contactor?

This contactor has a mechanical durability rating of 15Mcycles so you can rest assured it'll be on your team for a long time.

How often can I use this contactor?

Thanks to its maximum operating rate of 3600Cyc/H at +60°C, you can reliably use it to switch circuits in fast-paced machinery.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

Certificate No.
type":"Certificate No.",

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

UL E164862

CSA 43364
