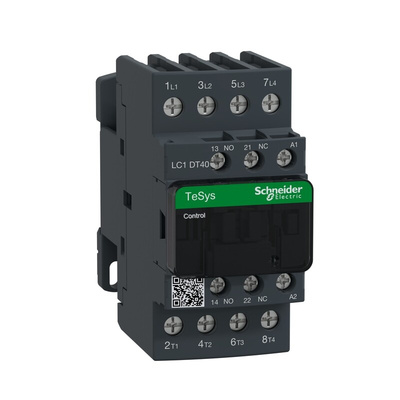

LC1DT40P7, Schneider Electric LC1D Series Contactor, 230 V ac Coil, 4-Pole, 40 A, 4NO, 690 V ac, Контактор

Schneider Electric Contactor, 690V AC Contact Voltage, 91mm Length - TeSys Series - LC1DT40P7

Choose this contactor from Schneider Electric to set your workflow in motion. Thanks to its 40A current rating, you can trust it to efficiently switch high-power industrial applications on and off. As it works at its best in a wide operating temperature range between -5°C and +60°C, it takes harsh conditions in its stride. The unit's made from flame-retardant materials to boost safety in the event of a fire. Screw-clamp terminals are on hand to make installation fast and achieve connections that won't shake or pull loose.

Features & Benefits

• Mechanical durability of 15 million cycles for longevity
• IP20 rating indicates it's touch-proof and resistant to objects bigger than 12mm
• Free from mercury, toxic heavy metals, SVHC and PVC for workplace safety
• Two auxiliary contacts boost connectivity potential

Applications

• Heavy industry
• Mechanical workshops
• Industrial automation

What size is this contactor?

Dimensions of 91 (L) x 45 (W) x 97mm (D) make it a space-efficient choice that fits neatly into complex setups.

How much does this product weigh?

It tips the scales at just 0.425kg, so it's a lightweight option that minimises strain on your equipment.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

UL E164862

CSA 43364
