LC1D258P7, Schneider Electric LC1D Series Contactor, 230 V ac Coil, 4-Pole, 40 A, 2NO + 2NC, 690 V ac, Контактор

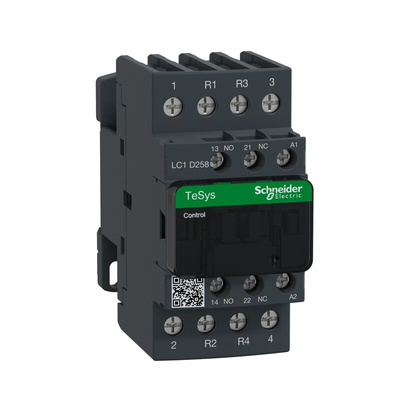

Schneider Electric Contactor, 230V AC Coil, 40A Current Rating - TeSys D Series - LC1D258P7

Use this contactor from Schneider Electric’s TeSys D range to start motors and control automated processes. Its coil works off 230V AC in a contact voltage rating of 690V AC, so it's suitable for high-powered systems. Additional auxiliary contacts give you further switching potential, making this contactor a versatile option. It can be mounted either on a panel using its screw terminals or on a DIN rail, so installation is quick and easy.

• Free from mercury and toxic heavy metals so it's environmentally friendly
• Bidirectional peak-limiting diode protects the coil to prevent malfunction
• Four poles support additional connections, boosting productivity
• Compact dimensions of 105 (H) x 45 (W) x 99mm (D) for use in small spaces
• Low weight of 0.425kg means it won't place strain on your setup

Applications

• Industrial automation
• Energy generation
• Food and beverage industries

Is this contactor suitable for use in harsh environments?

Yes – this contactor has an operating temperature range of -5°C to +60 °C, so is safe for use in harsh industrial settings. An IP20 rating means it’s also touch-proof and protected from objects over 12mm in size.

Approvals

LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.

Standards

CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.

UL E164862

CSA 43364
