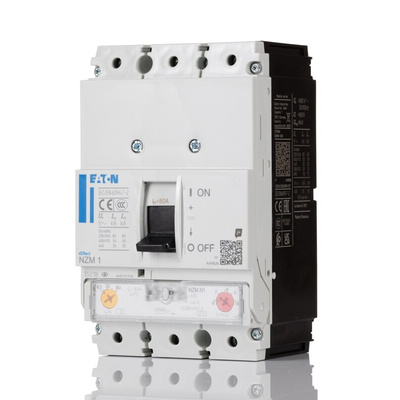

259084 NZMN1-A80, Eaton, xEnergy MCCB 3P 80A, Breaking Capacity 50 kA, Fixed Mount

Eaton MCCB, 63 to 80A Overload Trip Range, 3 x Poles - NZM1 Series - 259084 NZMN1-A80

Need to safeguard your industrial equipment against electrical damage? This MCCB from Eaton works a treat. Thanks to its thermal-magnetic tripping mechanism, it disconnects power to your circuit in a flash in the event of excess current, helping to prevent short circuits and overloads. Its three poles let you link up to three devices at once for enhanced versatility. The housing has an IP20 rating, so it's touchproof and protected from objects larger than 12mm to keep your fingers zap-free. You can use this product for medical or military applications.

Features & Benefits

• Keeps its cool in harsh environments, thanks to a wide operating temperature range between -25°C and +70°C
• Current rating of 80A for use with heavy-duty industrial equipment
• Compact dimensions of 145 (L) x 90 (W) x 84.5mm (D) mean it takes up minimal space in your setup
• Rated insulation voltage of 690V so it can handle powerful voltage spikes

What's the electrical lifespan of this MCCB?

It has a long electrical lifespan of up to 10,000 operating cycles, so you can count on it for long-term performance.

Note

Eaton formerly known as Moeller

Standards

IEC/EN 60204; IEC/EN 60947; VDE 0660

Datasheet - Eaton NZMN1-A80

Instruction Sheet - 259084 NZMN1-A80

Catalogue - New Digital NZM
