260172 NZM1-XTVDV, Eaton Handle for N (S)1(-4) Series, NZM1(-4) Series, PN1(-4) Series

EATON MCCBs - NZM1 Series

MCCBs, otherwise known as molded case circuit breakers, are devices that offer protection to motors, transformers, generators, and other equipment or systems. The NZM1 range from EATON offers compact breakers with 4 frame sizes and multiple installation and connection options. Available with thermal-magnetic tripping technology, they feature adjustable time selectivity and earth fault protection. With the option of on-board diagnostics and data logging on some models, for monitoring of critical circuits without the need for additional hardware. Discrete relay outputs available for high load warnings at 70%, 100% and 120%.

EATON's NZM range also features circuit breaker accessories, and IEC switch disconnectors offering a broad portfolio of products.

Features and Benefits:

• 3 and 4 pole versions available
• 15A to 1600A current rating available
• Multiple installations and connection types available
• Easy fitting of undervoltage and shunt strips
• Diverse range of settings
• Tripping in milliseconds
• Circuit protection
Standard black/grey handle 454-8269, Red/ yellow for emergency handle 454-8275.

Applications:

Ideal for panel builders, automation, engineering, and machinery OEMs. MCCBs offer overload protection from damage of excess current, overloads and short circuit, essential for motors, power generators, transformers, and other electrical equipment.

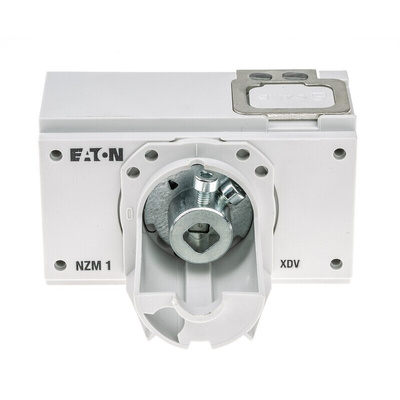

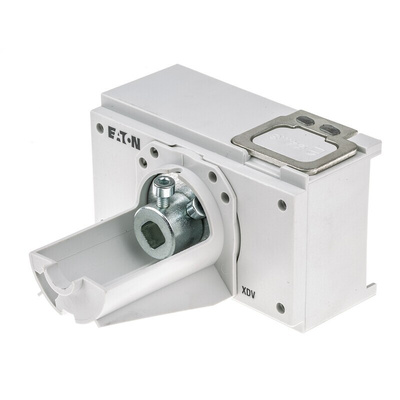

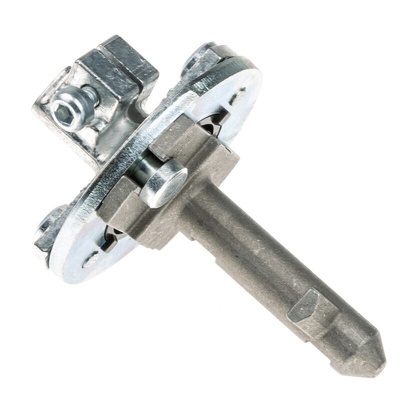

Eaton Lockable Rotary Handle for use with NZM1 Series MCCBs - NZM1-XTVDV

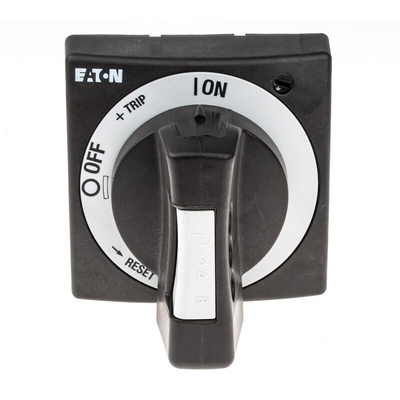

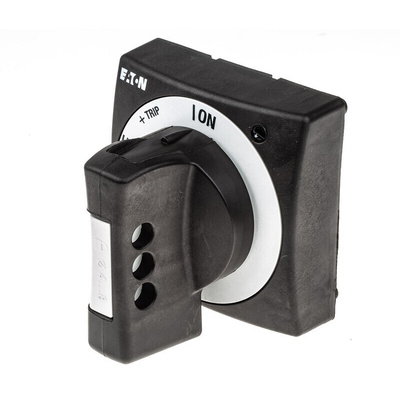

This door coupling rotary handle is designed for operating the switch through a closed control panel door. Suitable for use with the NZM1 series of molded case circuit breakers this accessory switch device is lockable on the handle of the switch using up to 3 padlocks.

• Standard black/grey in colour
• Modifiable on the handle in I position
• External warning plate/designation label can be easily clipped on
• With door interlock
• Suitable for NZM1(-4), PN1(-4), N(S)1(-4) MCCBs

Note

Eaton formerly known as Moeller

Datasheet - Eaton NZM1-XTVDV
