260178 & NZM1-XTVDVR, Eaton Handle for use with N (S)1(-4) Series, NZM1(-4) Series, PN1(-4) Series

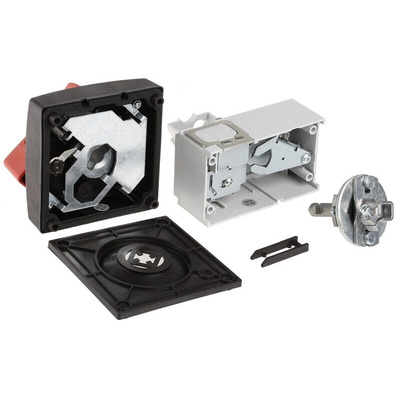

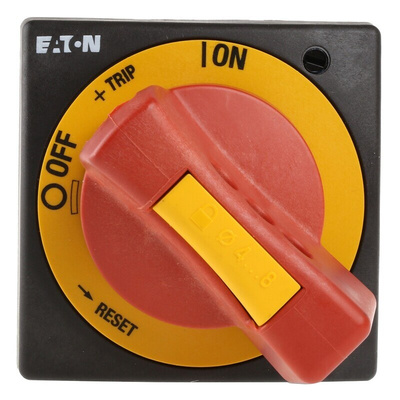

Eaton Door Coupling Rotary Handle - Interlocking Type

Introducing Eaton’s door coupling rotary handle, it has been created and designed for operating a switch through a closed control panel door.

Features and Benefits

• Lockable handle with switch, for use with up to three padlocks
• Features door interlocking
• The unlocked ON position can be modified
• The door coupling handle can be modified in such a way, that it can be compromised from the outside through the use of a screwdriver
• The door has the option to be opened in OFF
• A circuit breaker can be implemented in a lying position of 90° left or right, whilst the handle remains in the same position
• Double lockable
• Designed and created to be fitted directly to the NZM1 range of MCCBs

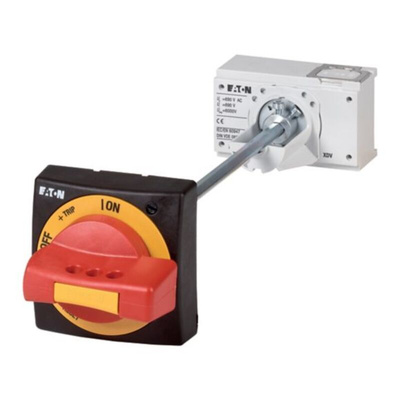

• For through panel operations, use an extension shaft
• Features a construction size of NZ1
• Approvals are UL/CSA & IEC

Note

Please check compatibility of accessory with MCCB.
