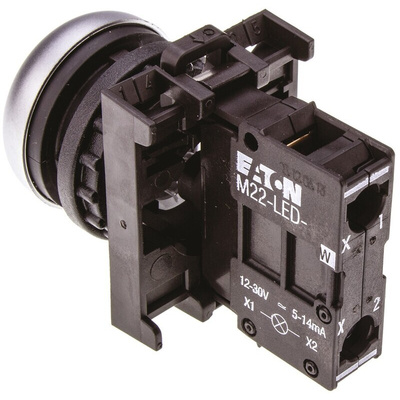

78639206 M22-DL-W+M22-A+M22-LED-W, Eaton RMQ Titan M22 Series White Illuminated Momentary Push Button Head, 22mm Cutout, IP69K

Eaton RMQ Titan Push Button Head, 12 to 30V AC/DC Voltage Rating, 29.7mm Button Diameter - RMQ-Titan / M22 Series - 78639206 M22-DL-W+M22-A+M22-LED-W

Shed light on your switching tasks with this Eaton push button head. Its white LED block shines bright, so it's clear to see on a busy control panel. The unit's momentary function means it only works when pressed, so puts precise machine control at your fingertips. Slipping the unit into tight spaces is no issue thanks to its flush mounting style, which also cuts the risk of accidental actuation. To tackle intense control tasks, it switches up to 3,600 times an hour. Push button heads like this one are commonly used to manage systems in bottling plants and the automotive industry.

Features & Benefits

• Uses just 0.26W of power for energy-efficient switching
• Service life of 5 million mechanical cycles, providing long-lasting machine management
• Mounts into an industry-standard 22mm cutout, minimising the need to drill new ports
• Secure screw terminals to keep fingers clear of conductors
• Includes a fixing adapter for secure mounting

Can I use this push button head in my outdoor application?

Yes, this unit has an IP69K rating, meaning it's totally protected against dust and hot pressurised water jets. This lets it push through tough weather conditions without a hitch.

Note

Eaton formerly known as Moeller
