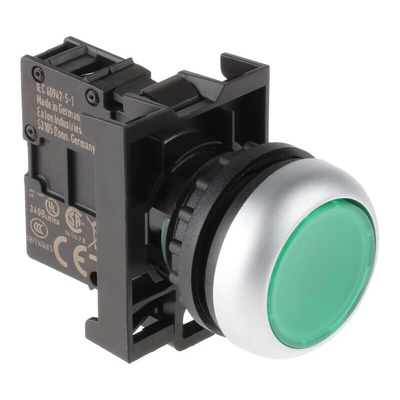

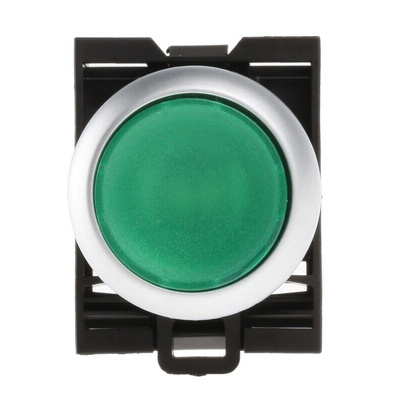

78639208 M22-DL-G+M22-A+M22-LED-G, Eaton RMQ Titan M22 Series Green Illuminated Momentary Push Button Head, 22mm Cutout, IP69K

Eaton RMQ Titan Push Button Head, LED Illumination, 12 to 30V AC/DC Operating Voltage - RMQ-Titan / M22 Series - 78639208 M22-DL-G+M22-A+M22-LED-G

Customise your control panel with this momentary push button head from Eaton. As it features LED illumination, you can easily determine if your system is off or on. The standard 22mm cutout diameter makes installation easy and means the unit takes up minimal space on your panel. Once installed, this button head has an IP69K rating, so you can be sure it's dustproof and protected against high-temperature, high-pressure water jets. You'll commonly find it used on vehicle dashboards and in manufacturing applications.

Features & Benefits

• Titanium front ring is resistant to corrosion and impact, so suited to demanding environments
• Broad operating temperature range between -25°C and +70°C for use in harsh settings
• Actuating force of 5N or less for ease of use

Does this unit consume a lot of energy?

No, the LED lamp in this device has low power consumption of just 0.26W, making it an energy-efficient choice.

What does this button head come with?

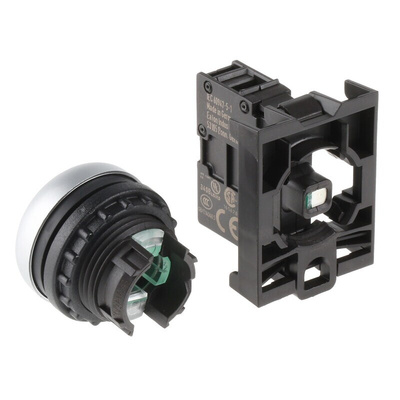

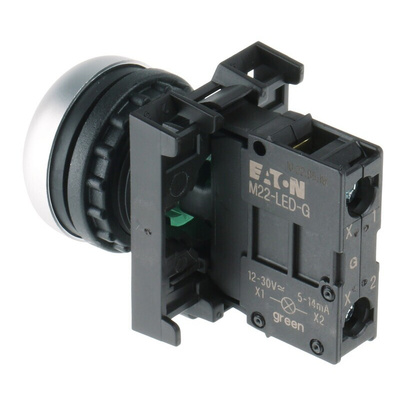

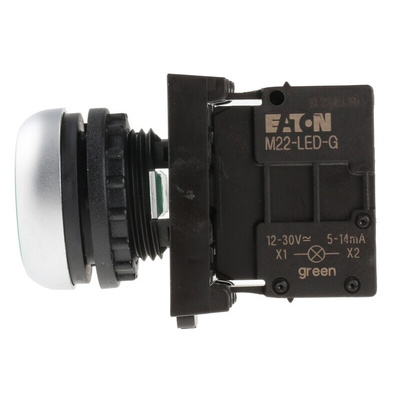

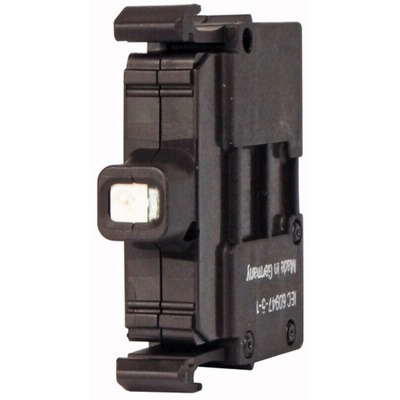

This push button head comes with a fixing adapter and LED element, so it's ready for installation in your control panel.

Note

Eaton formerly known as Moeller
