78639213 M22-DL-G+M22-A+M22-LED230-G, Eaton RMQ Titan M22 Series Green Illuminated Momentary Push Button Head, 22mm Cutout, IP69K

Eaton Push Button Head, Over 5 Million Operations Mechanical Lifespan, Front Fixing - M22 Series - M22-DL-G+M22-A+M22-LED230-G

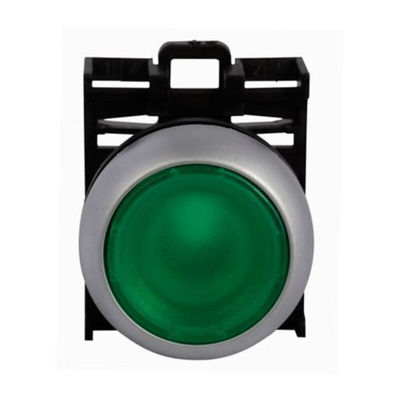

Looking for an ergonomically designed controller for your industrial process? This round green push button head from Eaton does the trick. It's a complete unit that slots neatly into a standard 22mm-diameter hole, so you can mount it easily into an existing space on your control panel. Momentary action and the ability to withstand up to 3600 operations per hour make this a reliable choice for controlling heavy-use systems that need a lot of switching on and off. Use it for jobs such as managing individual elements of a conveyor process.

Features & Benefits

• Flush design prevents accidental actuation
• Performs without a glitch in demanding temperatures between -25°C and +70°C
• IP67 and IP69K ratings indicate it's dust-tight and waterproof against jets from all directions

Does this unit come with an LED element?

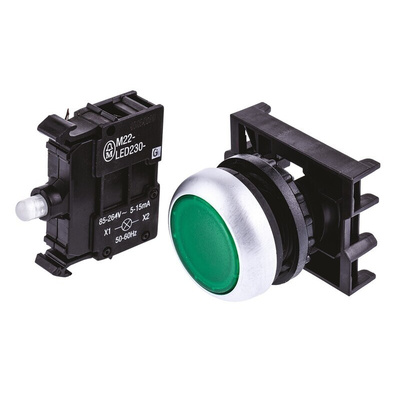

Yes, the unit includes both the push button head and the LED element to make installation speedy.

Is this product compatible with SmartWire DT?

Yes, you can link this push button and lighting block in a flash with Eaton's handy SmartWire DT system. This uses a cable that consolidates all the necessary wires into one line to save time and hassle during set-up.

Note

Eaton formerly known as Moeller

Green illuminated switch w/LED,85-264V

M22-DL-G Datasheet

Green Led Element M22-LED230-G
