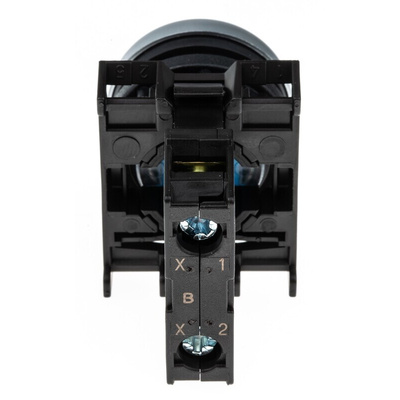

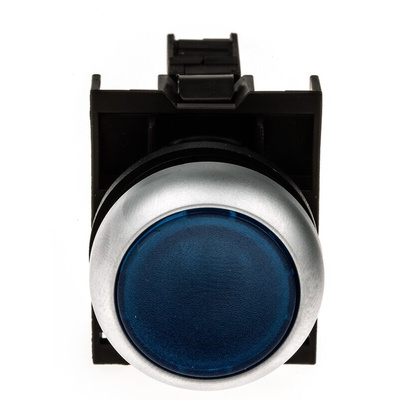

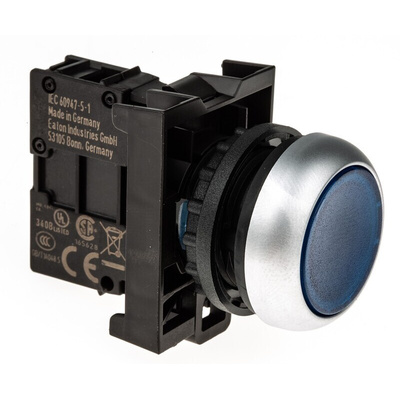

78639210 M22-DL-B+M22-A+M22-LED-B, Eaton RMQ Titan M22 Series Blue Illuminated Momentary Push Button Head, 22mm Cutout, IP69K

Eaton RMQ Titan Push Button Head, Blue, IP69K Rated - RMQ-Titan / M22 Series - 78639210 M22-DL-B+M22-A+M22-LED-B

Customise your control panel with this blue push button head from Eaton. Its LED indicator makes it easy to spot in most lighting conditions, while the titanium front ring is resistant to corrosion and impact for long-lasting performance in demanding environments. The flush mounting design means the unit won't protrude from the panel, helping to reduce the risk of accidental activation. For ease of installation, it's supplied with a fixing adapter and all the accessories you need to mount it straight out of the box. You'll find push button heads like this one used on industrial vehicles or production lines.

Features & Benefits

• Wide operating temperature range between -25°C and +70°C for use in demanding environments
• Modular design for easy installation in a customised setup
• Robust mechanical lifespan of more than five million operations for long-lasting use

Can I use this push button head in damp or dusty environments?

Yes, this push button head has an IP69K rating, which means it's dust-tight and protected against hot, high-pressure water jets. This makes it suitable for use in hygienic areas where frequent washdowns are essential.

Note

Eaton formerly known as Moeller
