78639219 & M22-L-R+M22-A+M22-LED-R, Eaton, M22, Flush Mount, Rear, Surface Mount Red Indicator, 22mm Cutout, IP69K, Round

Eaton M22 Series Push Button and Pilot Lights

The RMQ-Titan M22 series from Eaton offers a wide range of attractive, ergonomically designed illuminated and non-illuminated push-buttons and indicator lights including LED elements, selector switches, key switches, push-pulls, alternate action and twist-to-release operators.

This comprehensive range of pilot devices is engineered to ensure that your machines, systems, and processes keep running smoothly and offers a wide variety of applications and processes. Designed for optimal functionality with a high degree of protection this range offers a wide range of solutions for your business

"Choice of colours complete with fixing adaptor and LED element

Two voltages available

22mm pushbutton assembly"

Eaton Fixing Adapter M22-A

Forming part of Eaton's M22 range is this fixing adaptor, also referred to as a mounting adaptor or mounting clamp. This adaptor is front mounting for 3 contact LED elements.

Standards

IEC/EN60947.

Approvals

UL, CSA.

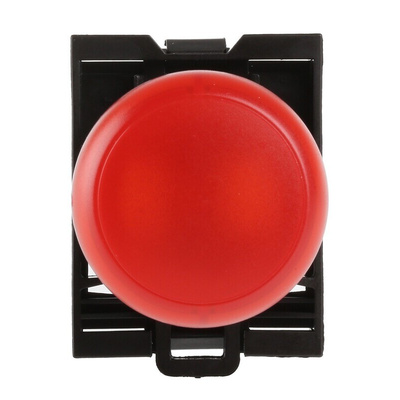

Eaton Red Indicator Push Button Head

This Eaton indicator button head, also known as a signal light or Pilot Light, can be used to alert or show the status of a piece of hardware. For example it can show when a machine or device is on or off using the light as a signal or warning. It comes complete with the fixing adaptor for contact blocks and LED element. It offers an IP rating of IP67 offering complete protection against contact (dust-tight) and immersion into water of up to 1 meter in depth. The flush button head with the use of LED light and Red colour make it an easy and clear design suitable for a variety of needs.

Features and Benefits

RMQ-Titan (drilling dimensions 22.5 mm)
Protection type: IP67, IP69K
Indicator function
Suitable for illumination

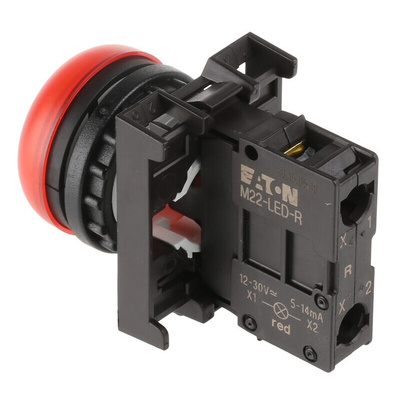

M22-LED-R Light Block

Created and designed to work alongside a contact block, Eaton's M22 range of light blocks perform as an add on that mounts to a push button to act as an indicator light. Once the push button is pressed, the light block turns on and illuminates through the button head.

M22-LED-R Datasheet

M22-L-R Datasheet

M22-A Datasheet
