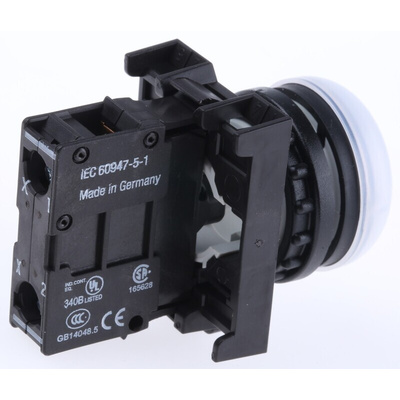

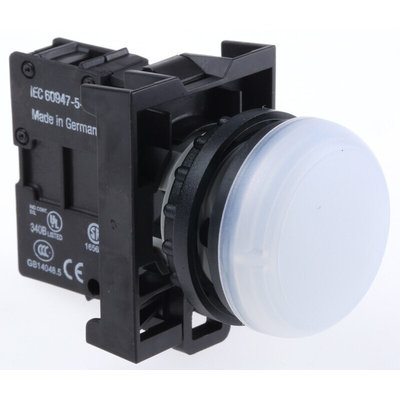

78639220 M22-L-W+M22-A+M22-LED-W, Eaton, RMQ Titan M22 White LED Pilot Light, 22mm Cutout, IP69K, Round, 12 → 30V ac/dc

Eaton Pilot Light, LED Illumination, 8 to 15mA Current Rating - RMQ-Titan / M22 Series - 78639220 M22-L-W+M22-A+M22-LED-W

For a clear indication of the status of your commercial and industrial applications, opt for this pilot light from Eaton. It's supplied as a complete unit with a lens, light element and mounting clamp, so you can install it without the need for extra parts. As indicated by its IP69K rating, it's dust-tight and protected against high-temperature, high-pressure water jets, so is safe for use in damp areas. For effective signalling, the unit's clear white LED lamp is bright enough to be seen in most lighting conditions. It's a versatile option that can be used anywhere from cranes to vehicle dashboards.

Features & Benefits

• Low power consumption of 0.26W at 24V for minimal energy usage
• Screw terminals ensure a secure, vibration-proof electrical connection
• Wide operating temperature range between -25°C and +70°C for use in demanding conditions
• Rated impulse withstand voltage of 6000V AC for protection against powerful surges
• Accepts solid and stranded wires for versatility

What's the operating voltage of this pilot light?

This pilot light has an operating voltage range of 12 to 30V AC/DC, so it's a good choice for use in low-power applications.

Note

Eaton formerly known as Moeller
