78639225 M22-L-W+M22-A+M22-LED230-W, Eaton, RMQ Titan M22 White LED Pilot Light, 22mm Cutout, IP69K, Round, 12 → 30V ac/dc

Eaton Pilot Light, 22.5mm Opening Diameter, With Front-Fixing Mounting Clamp - M22 Series - 78639225 M22-L-W+M22-A+M22-LED230-W

Want to keep an eye on the status of your equipment? You'll take a shine to this Eaton pilot light. To make monitoring easy, it illuminates when a connected machine is active. As it comes with a lens, mounting clamp and LED element, you have everything you need for swift and straightforward installation. The whole assembly weighs just 21g, so it doesn't put a strain on your system. An IP67 rating indicates the front is dust-tight and resists water damage even when immersed up to 1m. You'll find lights like this used everywhere from control panels to telecommunications hardware.

Features & Benefits

• LED element has an IP20 rating, meaning it's touch-proof and protected against objects larger than 12mm
• Rated lifespan of 100,000 hours at +25°C, so it's reliable
• Rated impulse withstand voltage of 4,000V AC indicates protection from substantial electrical surges
• Current rating of 5mA shows it doesn't guzzle electricity

Can I use this product in a factory?

Yes, you can. This unit can withstand temperatures between -25°C and +70°C, so it's suitable for use in harsh work areas.

Note

Eaton formerly known as Moeller

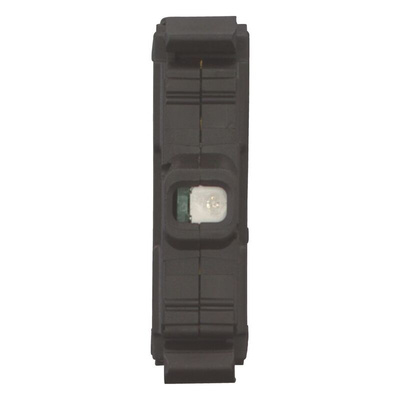

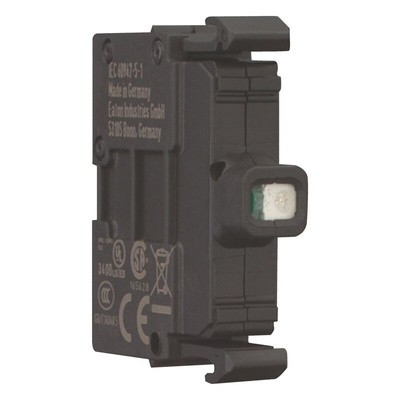

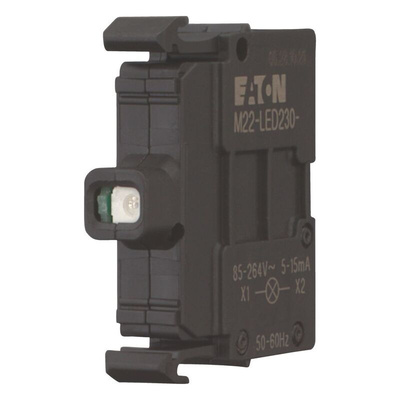

LED element,front,white M22-LED230-W Data Sheet

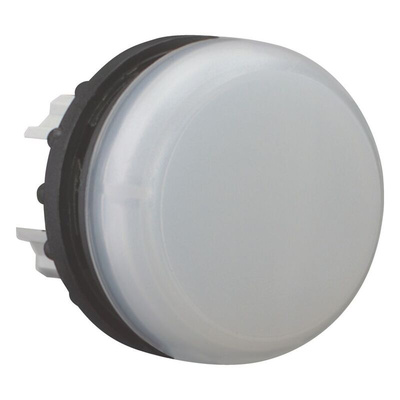

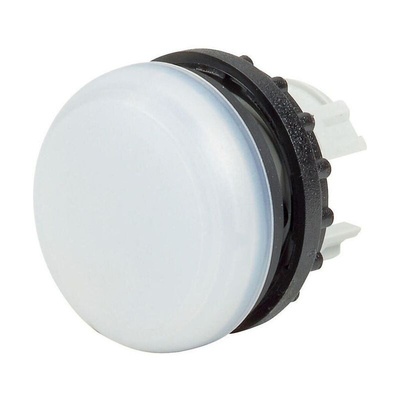

Indicator light,flush,white M22-L-W

Brochure - RMQ Pilot Devices

Datasheet - M22-A

Instruction Sheet - RMQ Titan M22 Series

Catalogue - Pilot Devices, Signal Towers, Position Switches
