0026333, Lapp ÖLFLEX CLASSIC FD Control Cable, 5 Cores, 1 mm², YY, Unscreened, 25m, Grey PUR Sheath, 17 AWG, Кабель

Ölflex PUR High Flex Cable for Power Chain Applications

From Lapp, the Olflex Classic FD 810 P power and control cable is designed for use in power chains. The high-flex cable is oil-resistant, as well as abrasion and notch resistant. This means it is ideal for dynamic applications that require continuous flexing, as well as being suitable for use in harsh environments. As such, it is often employed in assembly lines and robotics.

This Olflex Classic cable is made up of extra-fine copper wire strands with a PVC core insulation. It features a durable PUR outer sheath, with UV resistance and a low-adhesive surface. It can be used in dry, damp and wet interiors, under medium mechanical load.

Features and Benefits

• Mechanical Resistance
• Oil Resistant
• Suitable for Power Chains
• UV Resistant
• Flame Retardant to IEC 60332-1-2
• Non-woven wrapping

Applications

Thanks to its robust PUR sheath, the Olflex Classic is well-proven and reliable, and is suitable for many challenging applications. It is often used in;

• Machine Tools
• Transfer Lines
• Production and Assembly Lines
• Moving Machine Parts
• Control and measurement circuits

Standards

VDE 0295 / 6, VDE 0293, VDE 0245 / 0281, VDE 0245 / 0282

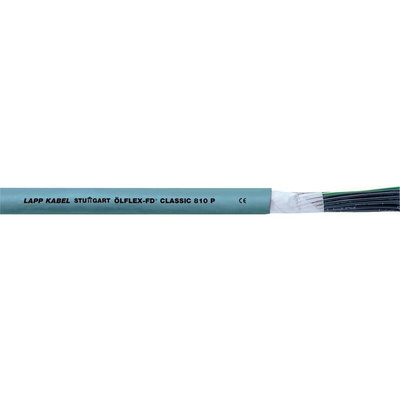

LAPP Control Cable, 300/500V AC Voltage Rating, 8mm Outer Diameter - ÖLFLEX® CLASSIC FD 810 PSeries - 0026333

Do you need to link automated devices in tight spaces? Reach for this LAPP control cable. With its stranded wires, the lead bends to fit into challenging areas without a hitch. As the cord's copper cores carry signals efficiently, you can rest assured it provides reliable control connections every time. Built-up charge is no trouble thanks to an integrated drain wire. The cable's abrasion-resistant PUR sheath shakes off nicks and cuts, so snags won't arise.

Features & Benefits

• Outer diameter of 8mm slips through low-profile spaces
• Numbered conductors clearly indicate connections during wiring
• 25m on the reel so you can tailor lengths to your jobs
• Handles seven million bending cycles for long-lasting connections

Applications

• Automated assembly lines
• Steel production
• Packaging industry

How far can I send signals along this cord?

This cable carries signals along lengths up to 50m, handling long-distance control connections without hassle.

Standards

VDE 0295 Class 6 / IEC 228 Cl.6 (Conductor); VDE 0293 (Colour Code); VDE 0245/0281 (Cores); VDE 0245/0282 (Sheath)
