0026338, Lapp ÖLFLEX CLASSIC FD Control Cable, 18 Cores, 1 mm², YY, Unscreened, 25m, Grey PUR Sheath, 17 AWG, Кабель

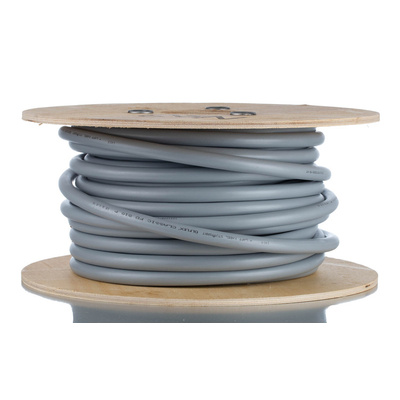

LAPP Grey Multicore Cable, 25m Length, 18 Cores - ÖLFLEX Series - 0026338

Meet power supply demands in your automated systems with this multicore cable from LAPP. It features 18 cores, which offer reliable signal and power transmission in demanding operations. You can use this durable cable with medium mechanical-load applications like industrial power chains. The robust polyurethane (PUR) outer sheath is highly flexible so it's a practical choice for use in mobile applications. For added safety, it's also flame-retardant for safe use in flammable areas. A wide operating temperature range between -40°C and +80°C means this cable can withstand harsh environments.

Features & Benefits

• PVC insulation for electrical safety
• Length of 25m can be used in a single long run or cut to size
• Copper conductors are corrosion-resistant, so deliver an extended service life
• Minimum bend radius four times its diameter for flexible installation in small spaces
• UV resistance means it can be used in direct sunlight without damage

Applications

• Conveyor systems
• Computer networks
• Manufacturing industry
• Robotics
• Aerospace industry

What does this cable's drain wire do?

The drain wire draws excess electrical current to the ground, preventing damage to equipment and keeping users safe from electric shocks.

Standards

VDE0295 Class 6/IEC 228 Cl.6 (Conductor); VDE 0293 (Colour Code); VDE 0245/0281(Cores); VDE 0245/0282 (Sheath)
