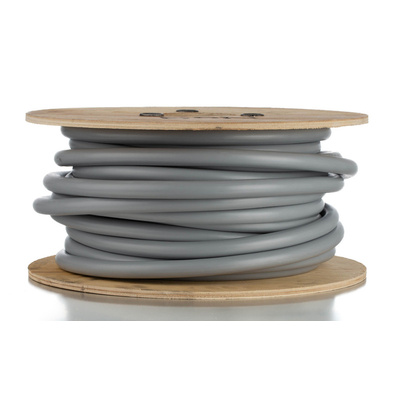

0026339, Lapp ÖLFLEX CLASSIC FD Control Cable, 25 Cores, 1 mm², YY, Unscreened, 25m, Grey PUR Sheath, 17 AWG, Кабель

LAPP Multicore Cable, 25 Cores, 17AWG - ÖLFLEX Series - 0026339

Use this multicore control cable from LAPP to measure and regulate transmissions in automated processes. It's highly flexible and can withstand 5 million alternating bending cycles, making it a practical choice for applications that demand continuous flexion. Thanks to a PUR (polyurethane) sheath, you can rest assured that this cable is durable and able to resist abrasion and cuts, as well as oil and UV light. This makes it tough enough for use in harsh industrial environments.

Features & Benefits

• Extra-fine wire strands made of bare copper wires (class 6) for high conductivity
• PVC core insulation resists electrical leakage and protects the integrity of the wire for a long service life
• Flame-retardant, so won't contribute to a workplace fire

Applications

• Food and beverage industries
• Robotics systems
• Machine tools
• Production and assembly lines
• Control and measurement circuits

What temperature range can this cable operate safely in?

This cable can operate safely within a temperature range of -5°C to +70°C with continuous flexing. When used in a fixed installation, the range increases to between -40°C to +80°C, making it suited to demanding industrial conditions.

Standards

VDE0295 Class 6/IEC 228 Cl.6 (Conductor); VDE 0293 (Colour Code); VDE 0245/0281(Cores); VDE 0245/0282 (Sheath)
